(1.89.5/05[01]) - (VAR.180) SLIDER TOW HOOK W/AUTO SWIVEL COUPL. & CABLE AND K80 WEL., LESS SWING. DRAWBAR - GER. TYPE - C6976

Запчасти Case IH PUMA 210 (1.89.5/05[01]) - (VAR.180) SLIDER TOW HOOK W/AUTO SWIVEL COUPL. & CABLE AND K80 WEL., LESS SWING. DRAWBAR - GER. TYPE - C6976 (09) - IMPLEMENT LIFT

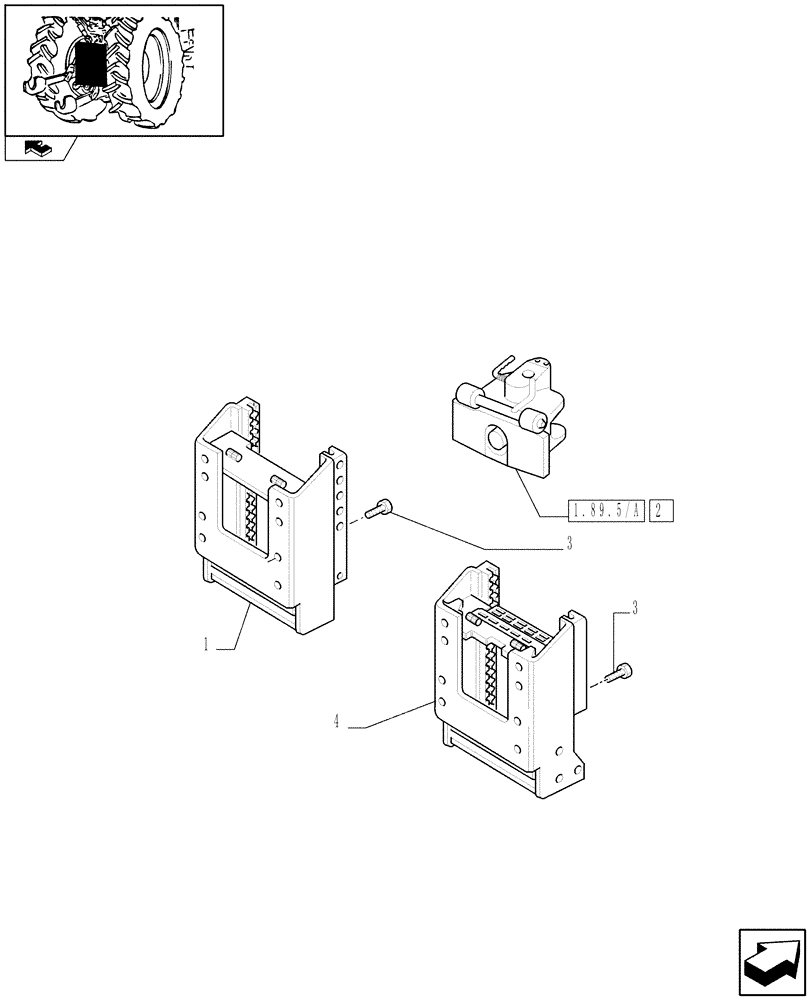

Схема запчастей Case IH PUMA 210 - (1.89.5/05[01]) - (VAR.180) SLIDER TOW HOOK W/AUTO SWIVEL COUPL. & CABLE AND K80 WEL., LESS SWING. DRAWBAR - GER. TYPE - C6976 (09) - IMPLEMENT LIFT
home
3
4
1.89.5/a
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87339239

TOW HOOK

, Serial Range: -C6405

1шт.

2

82029387

TOW HOOK

TOW HOOK ASSY

1шт.

3

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

4

84195503

TOW HOOK

, Start Serial: D6405

1шт.

Выбрано товаров: 4
