(1.89.5/04[01A]) - (VAR.181/2) SLIDER TOW HOOK WITH FIXED COUPLING, LESS SWINGING DRAWBAR - C & D3 TYPES - D6976

Запчасти Case IH PUMA 210 (1.89.5/04[01A]) - (VAR.181/2) SLIDER TOW HOOK WITH FIXED COUPLING, LESS SWINGING DRAWBAR - C & D3 TYPES - D6976 (09) - IMPLEMENT LIFT

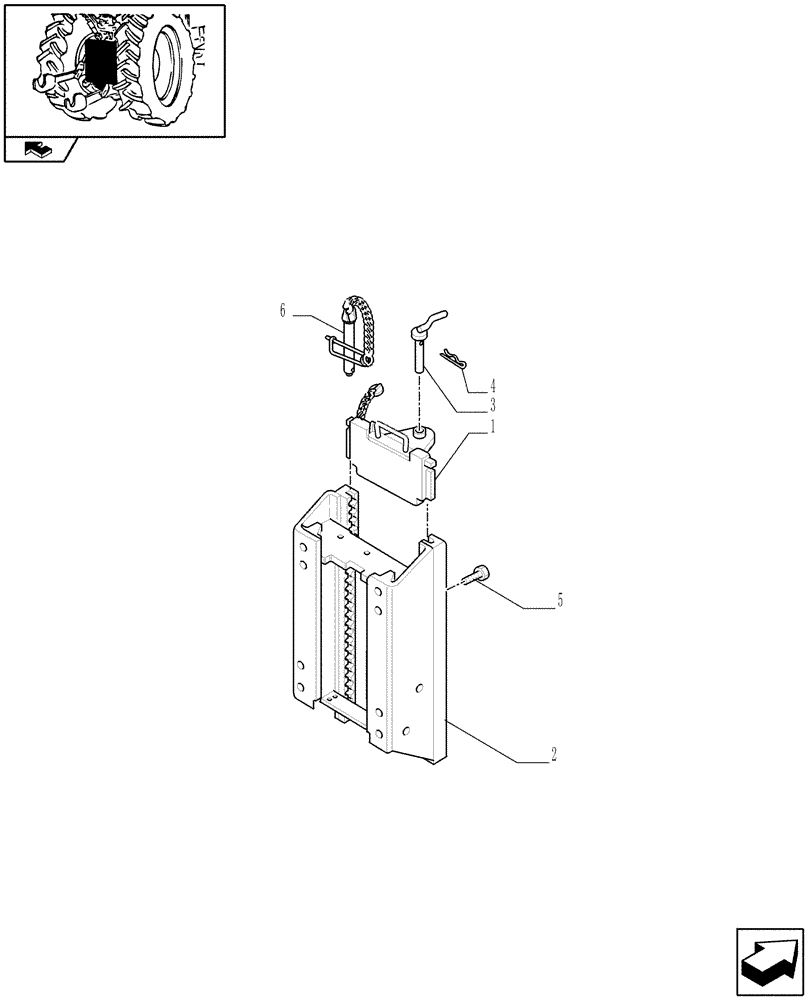

Схема запчастей Case IH PUMA 210 - (1.89.5/04[01A]) - (VAR.181/2) SLIDER TOW HOOK WITH FIXED COUPLING, LESS SWINGING DRAWBAR - C & D3 TYPES - D6976 (09) - IMPLEMENT LIFT
3
6
2
home
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199458

TOW HOOK

1шт.

1

82027419

TOW HOOK

1шт.

2

84351183

FRAME

1шт.

3

82016898

HITCH PIN

1шт.

4

82000094

SPRING,40mm OD x 142mm L

1шт.

5

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

6

5152005

PIN

1шт.

Выбрано товаров: 7
