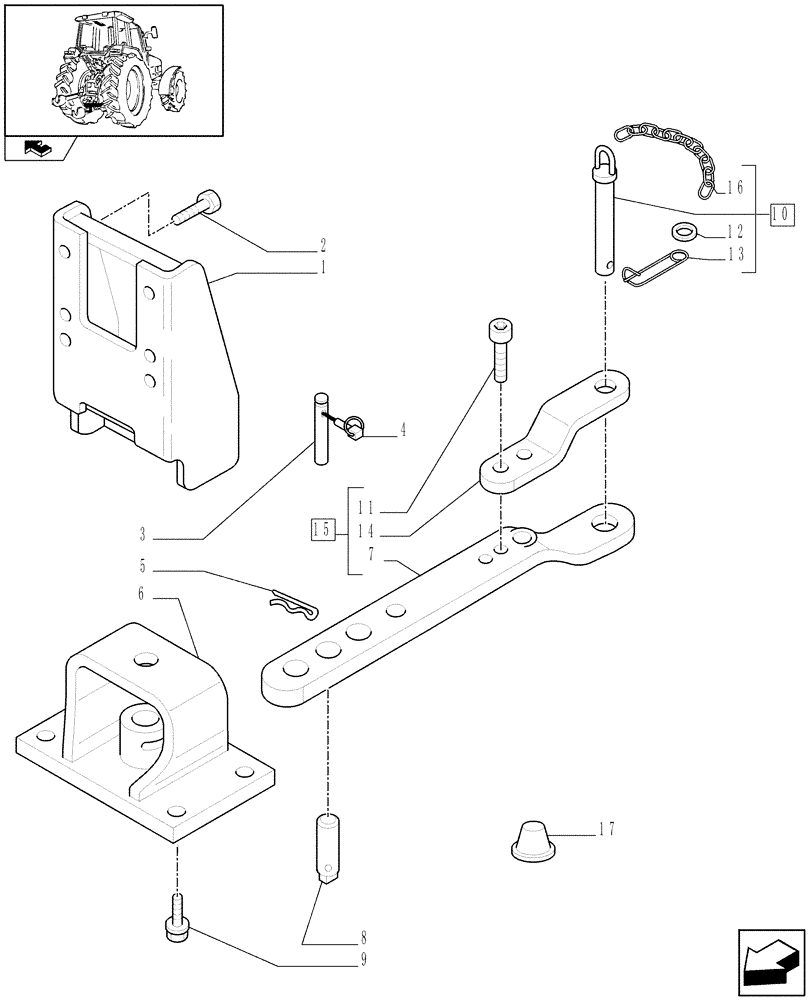

Запчасти Case IH PUMA 210 (1.89.0/03) - (VAR.839) INDIPENDENT SWINGING DRAWBAR - NASO - WITH CLEVIS (09) - IMPLEMENT LIFT

1

82032371

FRAME

1шт.

2

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

6шт.

3

82032378

PIN,20mm OD x 165mm L

2шт.

4

82014909

LOCK PIN,5.5mm OD

2шт.

5

82000094

SPRING,40mm OD x 142mm L

1шт.

6

87561340

HITCH BRACKET

1шт.

7

87561441

DRAWBAR

Incl. 11

1шт.

8

87561338

PIN,32mm OD x 156.5mm L

1шт.

9

87561332

BOLT,Flng, M18 x 1.5 x 55mm, Cl 12.9

4шт.

10

82033860

HITCH PIN,40mm OD x 224mm L

Incl.12, 13, 40x177

1шт.

11

14432774

HEX SOC SCREW,M20 x 2.5 x 80mm, 12.9

2шт.

12

44901192

SNAP RING,25mm ID

1шт.

13

5152004

HAIR PIN COTTER,195mm L

1шт.

14

87306344

CLEVIS,42mm HD, 311mm L

1шт.

15

87561341

DRAWBAR

1шт.

16

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

17

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

2шт.
