(1.68.6[14]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING

Запчасти Case IH PUMA 210 (1.68.6[14]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (05) - REAR AXLE

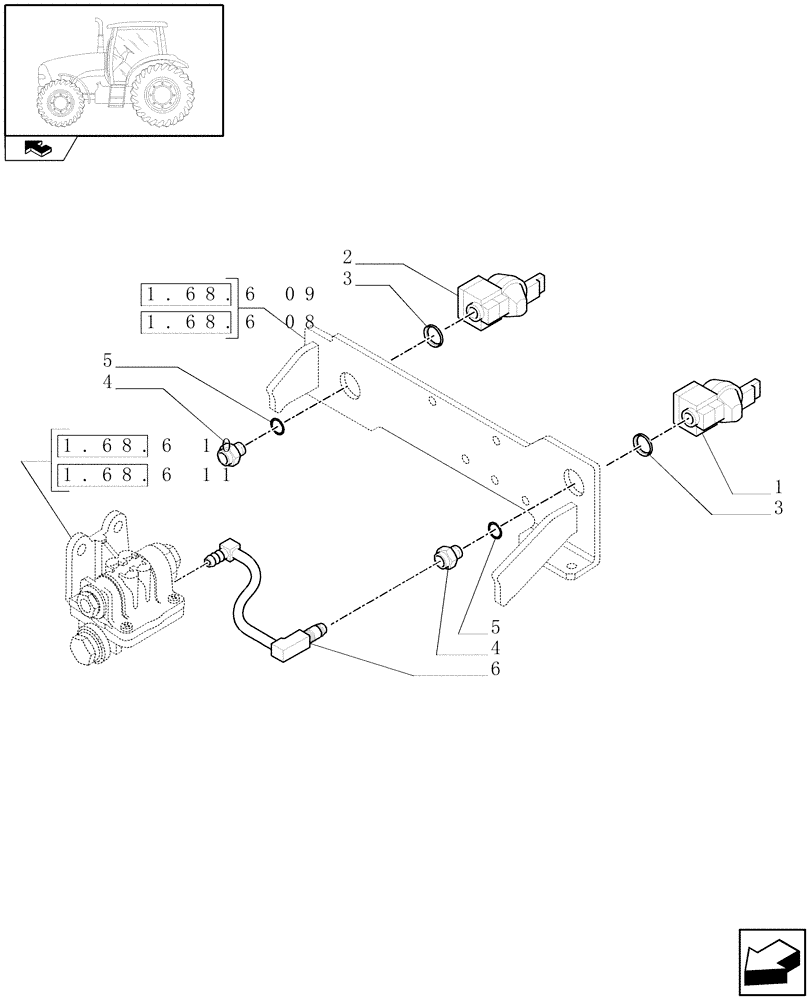

Схема запчастей Case IH PUMA 210 - (1.68.6[14]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (05) - REAR AXLE
home
1.68.6 10
1.68.6 11
1.68.6 08
1.68.6 09
3
4
4
5
2
1
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82001020

COUPLING

Yellow

1шт.

2

82001019

COUPLING

Red

1шт.

3

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

M16

2шт.

4

87678128

ADAPTER

M16

2шт.

5

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

6

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

Yellow

1шт.

Выбрано товаров: 6
