Запчасти Case IH PUMA 210 (1.68.5[01]) - BRAKE PEDALS - PIPES (05) - REAR AXLE

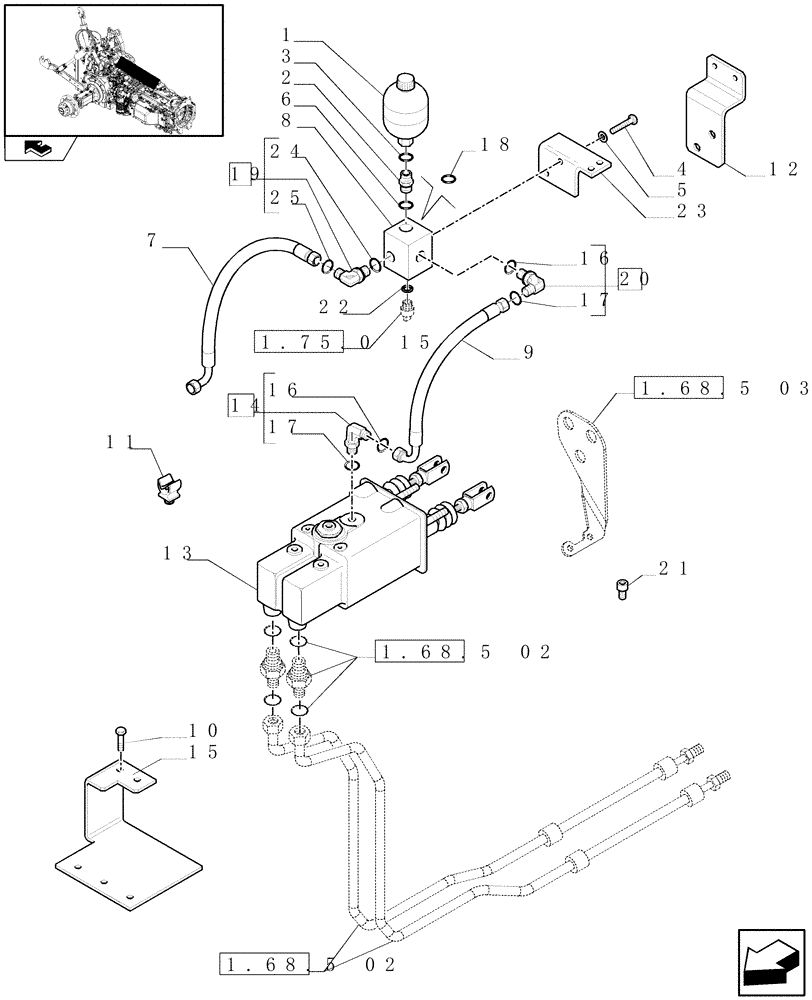

Схема запчастей Case IH PUMA 210 - (1.68.5[01]) - BRAKE PEDALS - PIPES (05) - REAR AXLE
21
2
9
17
16
8
1.75.0 15
home
1.68.5 02
1.68.5 02
1.68.5 03
22
12
6
24
10
20
17
23
13
5
14
19
7
1
11
18
16
4
15
3
25

Артикул

Название

Примечание

Количество

1

5195043

ACCUMULATOR,0.75L

1шт.

2

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

3

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

M6 x 2.0 x 14

2шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

87314105

HOSE,9.53mm ID x 800mm L, SAE 100R2

1шт.

8

5199762

BLOCK

Incl. 31

1шт.

9

87348003

HOSE,9.53mm ID x 540mm L, SAE 100R2

1шт.

10

16288324

FLANGE BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

MM80

2шт.

11

87313304

CLIP

2шт.

12

87648216

BRACKET

1шт.

Auto Guidance System Ready; VAR.190-330

1шт.

13

87315873

MASTER CYLINDER

, Serial Range: -C7145

1шт.

87754484R

REMAN-MASTER CYLINDE

PUMA 165 , PUMA 210 , PUMA 180 , PUMA 195 all - SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> …( 1/09 - ) Reman for new P/N 87315873

1шт.

87754484C

CORE-MASTER CYLINDER

Return Number

1шт.

13

87754484

MASTER CYLINDER,39mm Stroke

, Start Serial: D7145

1шт.

14

82015686

ELBOW,M16 x 1.5 x 37.5mm

1шт.

15

87565907

SUPPORT

1шт.

16

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

18

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

19

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

20

5199763

HYD CONNECTOR

1шт.

21

14643294

RIVET

2шт.

22

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

23

87332526

SUPPORT

1шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

25

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 29
