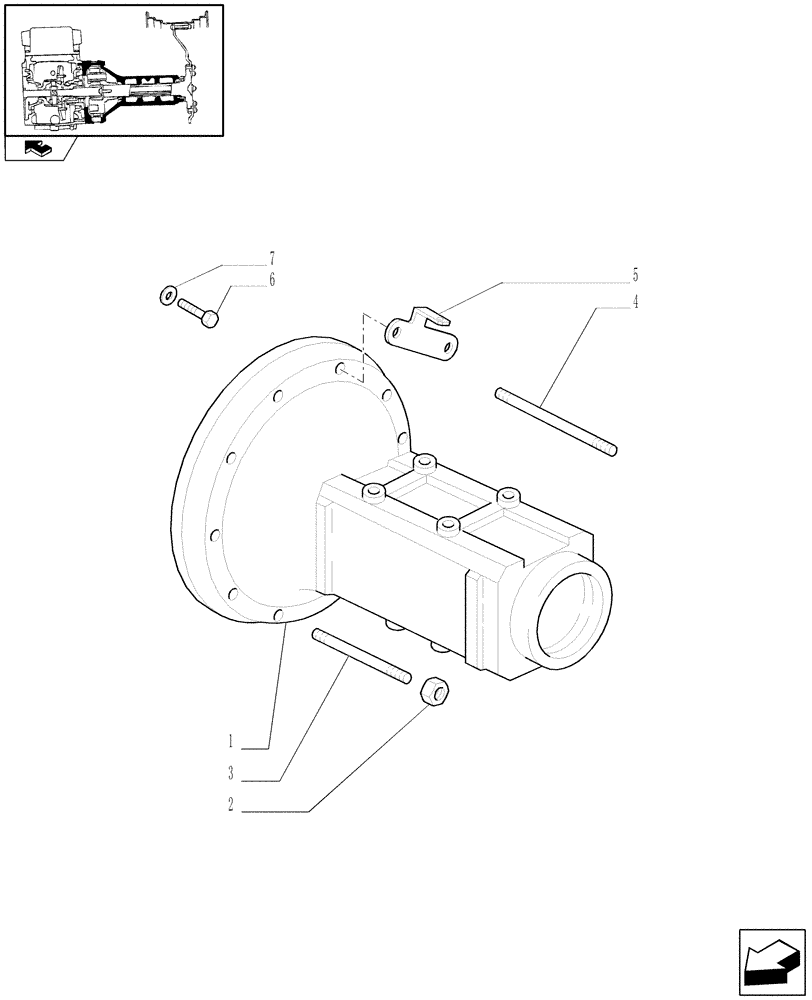

Запчасти Case IH PUMA 210 (1.48.0) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE

1

47135687

SHAFT HOUSING

2шт.

For PUMA 165, PUMA 180, PUMA 195 Models only

1шт.

1

84486564

AXLE HOUSING

2шт.

Puma 210, Version only

1шт.

2

12164124

NUT,M16 x 1.5, Cl 8

24шт.

3

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

M16 x 32 x 105

17шт.

4

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

M16 x 32 x 120

7шт.

5

87515604

BRACKET

RH, Serial Range: -C7103

1шт.

5

87515601

BRACKET

LH, Serial Range: -C7103

1шт.

5

84488702

BRACKET

LH, Start Serial: D7103

1шт.

5

84488700

BRACKET

RH, Start Serial: D7103

1шт.

6

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
