Запчасти Case IH PUMA 210 (1.40.3/02) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - STEERING PIVOT PINS (04) - FRONT AXLE & STEERING

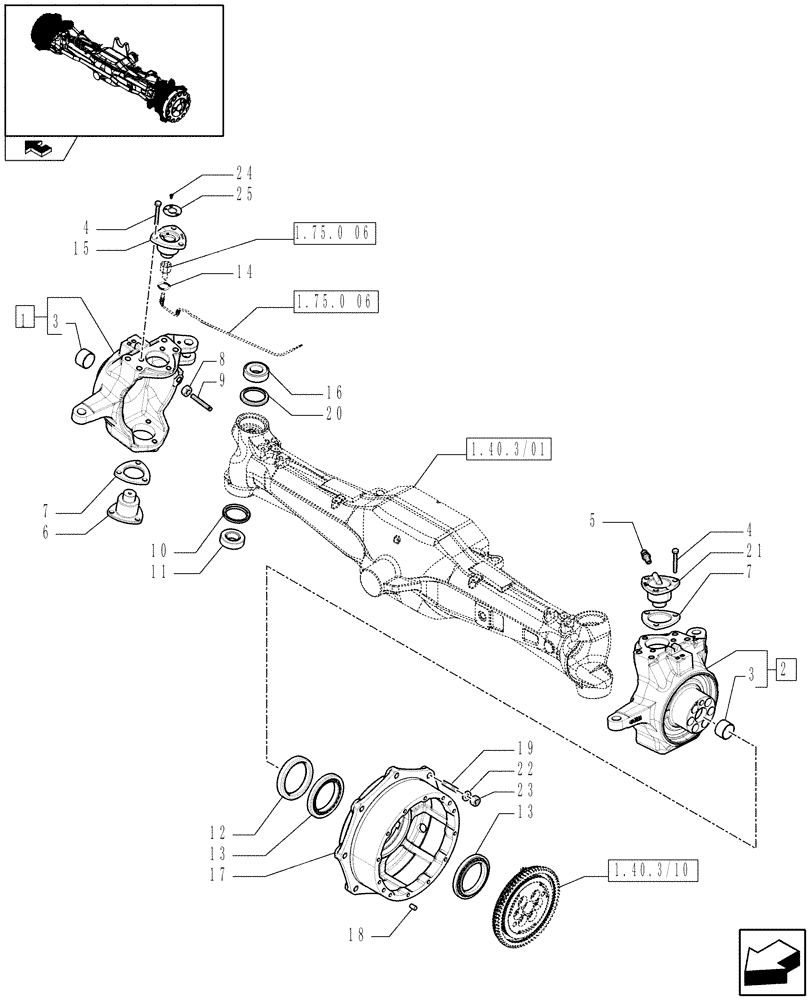

Схема запчастей Case IH PUMA 210 - (1.40.3/02) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - STEERING PIVOT PINS (04) - FRONT AXLE & STEERING
20
8
10
3
7
4
1
11
16
24
2
21
18
1.40.3/01
1.75.0 06
1.75.0 06
home
1.40.3/10
14
13
25
13
19
15
5
23
22
9
12
7
4
3
17
6

Артикул

Название

Примечание

Количество

1

84188846

STEERING KNUCKLE

RH, Serial Range: -C6632

1шт.

1

84263790

STEERING KNUCKLE

RH, Start Serial: D6632

1шт.

2

84188851

STEERING KNUCKLE

LH, Serial Range: -C6632

1шт.

2

84263793

STEERING KNUCKLE,LH

LH, Start Serial: D6632

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

7

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

20mm Thk

1шт.

7

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

25mm Thk

1шт.

7

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

30mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190 x 220 x 15/17

2шт.

13

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

109.538 x 158.750 x 23.02

4шт.

14

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

15

87345372

BALL STUD

BALL PIN

1шт.

16

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

80MM ID

1шт.

17

87600174

HUB

Incl.18

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

87618916

STUD

16шт.

20

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

70 x 90 x 10

1шт.

21

87382381

BALL STUD

BALL PIN

1шт.

22

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

23

10790524

NUT,M16 x 1.5

16шт.

24

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

25

84384510

TOP

1шт.

Выбрано товаров: 31
