(1.40.2/05[01]) - (VAR.463) FRONT AXLE WITH ACTIVE SUSPENSIONS - SUPPORT

Запчасти Case IH PUMA 210 (1.40.2/05[01]) - (VAR.463) FRONT AXLE WITH ACTIVE SUSPENSIONS - SUPPORT (04) - FRONT AXLE & STEERING

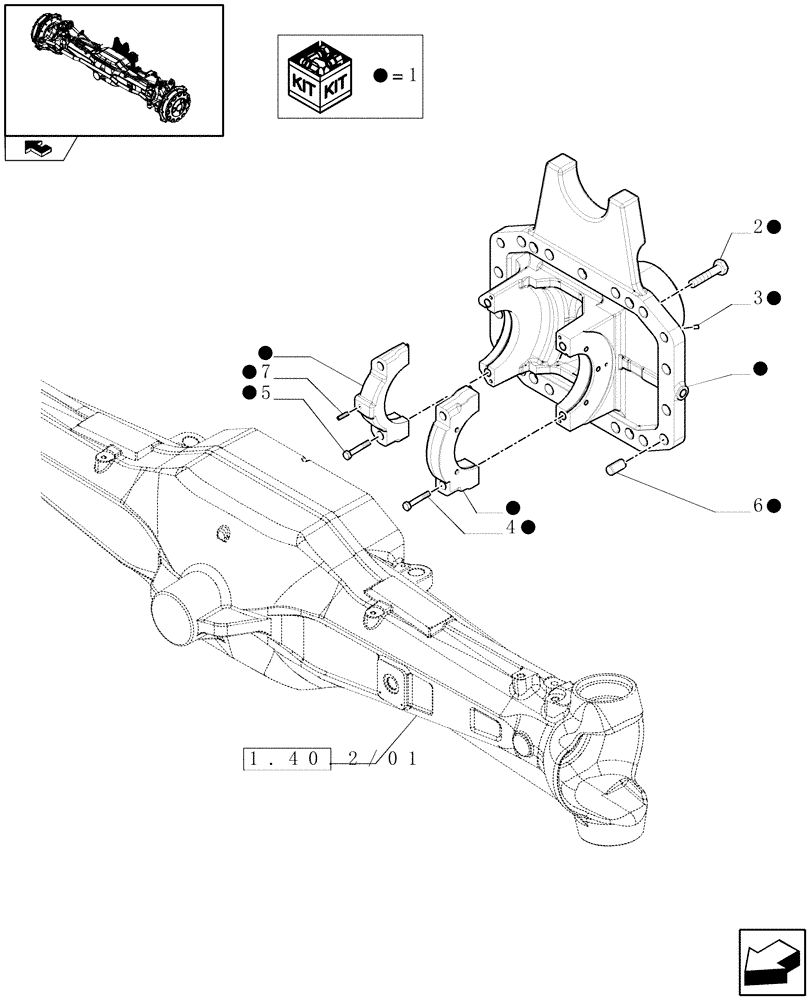

Схема запчастей Case IH PUMA 210 - (1.40.2/05[01]) - (VAR.463) FRONT AXLE WITH ACTIVE SUSPENSIONS - SUPPORT (04) - FRONT AXLE & STEERING
1
1
1.40.2/01
home
4
3
5
1
1
1
2
1
1
1
7
1
1
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87490096

SUPPORT

1шт.

2

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

M16 x 1.5 x 40

6шт.

3

10268350

PLUG

1шт.

4

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

14 x 1.5.90

2шт.

5

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

14 x 15 x 75

2шт.

6

4966244

PIN,5mm OD x 15mm L

5 x 15

4шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

6 x 25

1шт.

Выбрано товаров: 7
