Запчасти Case IH PUMA 210 (1.40.1/10) - (VAR.195) FRONT AXLE WITH BRAKES - GEARS AND DIFFERENTIAL AXLE (04) - FRONT AXLE & STEERING

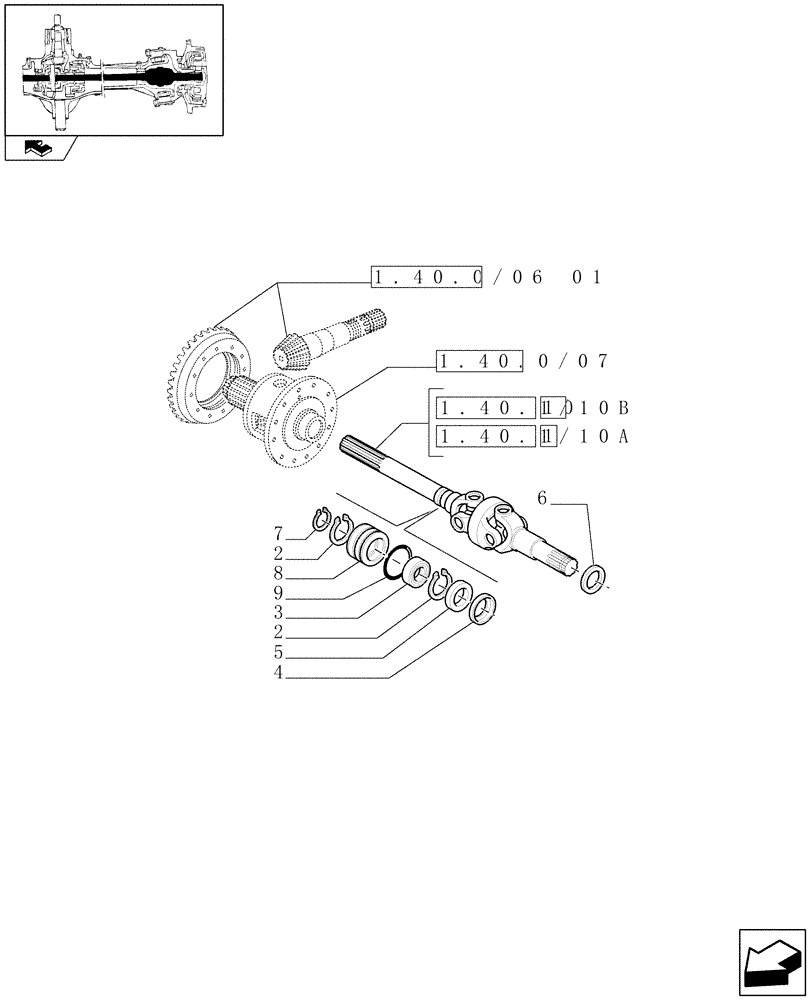

Схема запчастей Case IH PUMA 210 - (1.40.1/10) - (VAR.195) FRONT AXLE WITH BRAKES - GEARS AND DIFFERENTIAL AXLE (04) - FRONT AXLE & STEERING
1.40.0/07
home
1.40.1/10b
1.40.1/10a
1.40.0/06 01
8
9
1
4
7
3
5
2
2
6
10

Артикул

Название

Примечание

Количество

1

5191701

AXLE-SHAFT, ARTICULA

LH, Serial Range: -C6353

1шт.

1

5191702

AXLE-SHAFT, ARTICULA

RH, Serial Range: -C6353

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12, Serial Range: -C6353

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16, Start Serial: D6353

2шт.

6

5183845

SEAL

65 x 45 x 18.5, Serial Range: -C6353

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27, Start Serial: D6353

2шт.

7

5123651

SNAP RING,36mm, External

6шт.

8

87371236

BUSHING,68mm ID x 95mm OD x 49mm L

, Serial Range: -C6353

2шт.

8

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

, Start Serial: D6353

2шт.

9

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

10

84184113

AXLE-SHAFT, ARTICULA

LH, Start Serial: D6353

1шт.

10

84184102

AXLE-SHAFT, ARTICULA

RH, Start Serial: D6353

1шт.

Выбрано товаров: 15
