Запчасти Case IH PUMA 210 (1.33.3[01]) - 4WD ENGAGEMENT CLUTCH CONTROL - SHAFT AND DISKS (04) - FRONT AXLE & STEERING

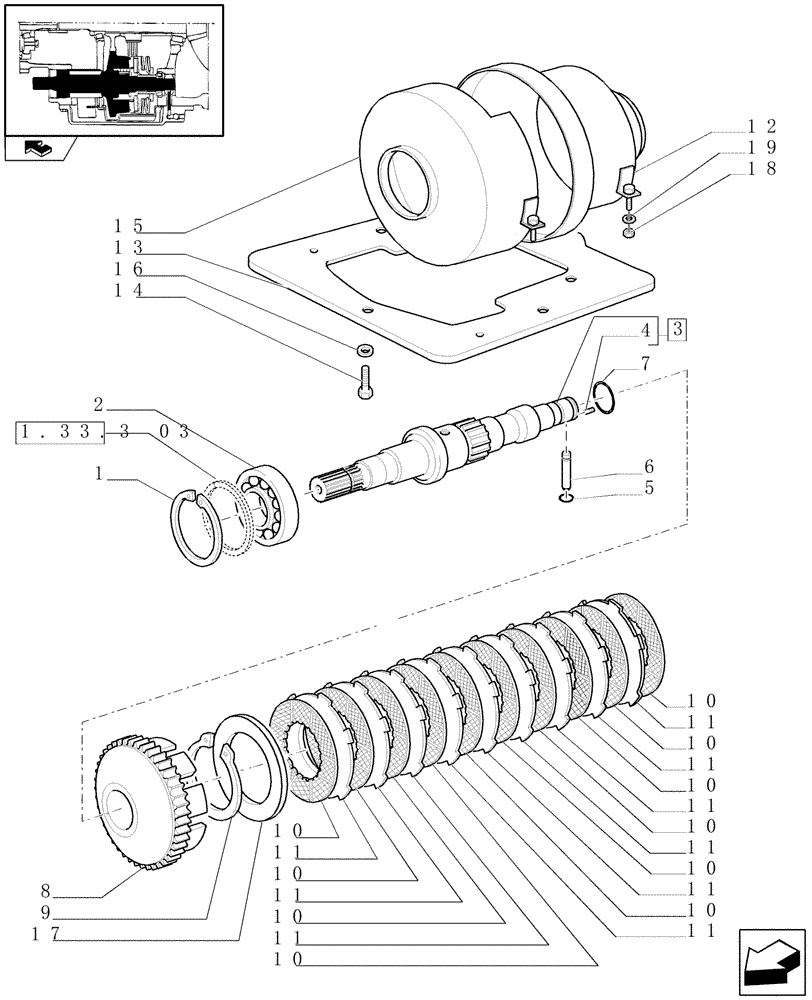

Схема запчастей Case IH PUMA 210 - (1.33.3[01]) - 4WD ENGAGEMENT CLUTCH CONTROL - SHAFT AND DISKS (04) - FRONT AXLE & STEERING
10
12
10
13
15
17
2
10
11
10
19
10
10
11
6
home
10
10
10
4
5
18
14
1
1.33.3 03
16
11
9
11
11
11
10
11
8
11
7
3
11

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

1шт.

2

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

3

5195111

SHAFT

1шт.

4

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

5

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

6

14516210

DOWEL,M7 x 45

1шт.

7

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

8

87699456

GEAR,60T

Z=60

1шт.

9

5139462

SNAP RING,3mm Thk

1шт.

10

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

10шт.

11

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

9шт.

12

87331606

SHIELD

1шт.

13

87331584

SHIELD

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

15

87331605

SHIELD

1шт.

16

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

17

47126552

CLUTCH PLATE

1шт.

18

10720124

NUT,Hex, M6 x 1

4шт.

19

11197770

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

Выбрано товаров: 19
