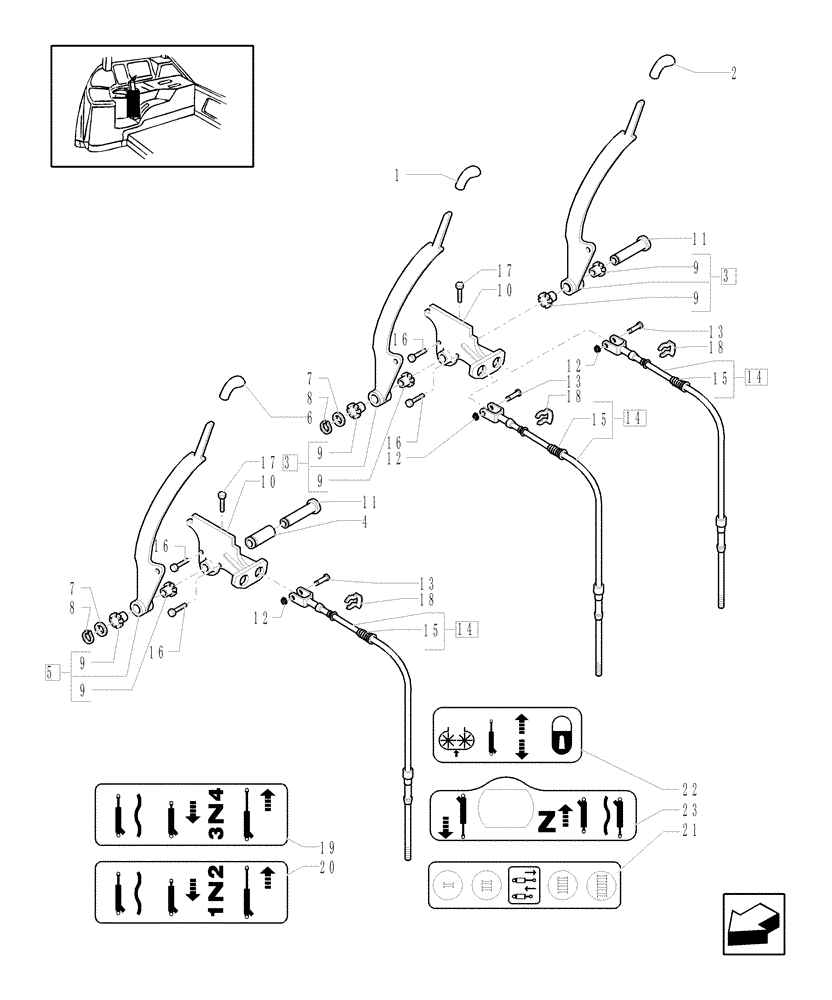

Запчасти Case IH PUMA 210 (1.96.2/01[01]) - (VAR.667-681-669-700-723) 3 REAR CONTROL VALVES - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB

1

82037910

KNOB

Black

1шт.

2

82037911

KNOB

Ginger

1шт.

3

82036832

LEVER

Includes Ref. 9

2шт.

4

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

5

82036839

LEVER

Includes Ref. 9

1шт.

6

87302206

KNOB

Green

1шт.

7

81819651

SPRING WASHER,13mm ID x 19mm OD

2шт.

8

11088171

SNAP RING,M11

2шт.

9

82035633

BUSHING

6шт.

10

87308465

HOUSING

2шт.

11

82035628

HEADED PIN,11.98mm OD x 95mm L

2шт.

12

11087776

CIRCLIP,Ext., M6, BLO

3шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

14

87308462

BOWDEN CONTROL

Includes Ref. 15

3шт.

15

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

3шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

17

13806421

SET SCREW,Hex Soc, M6 x 8mm

2шт.

18

83982632

CLIP

3шт.

19

82036479

DECAL

1шт.

20

82036478

DECAL

1шт.

21

87311455

DECAL

1шт.

21

87311413

DECAL

1шт.

22

82036262

SPACER

1шт.

W/Equip. 252

1шт.

23

82039094

DECAL

1шт.

W/Equip. 252

1шт.
