Запчасти Case IH PUMA 210 (0.14.0/ A) - INJECTION PUMP - COMPONENTS (01) - ENGINE

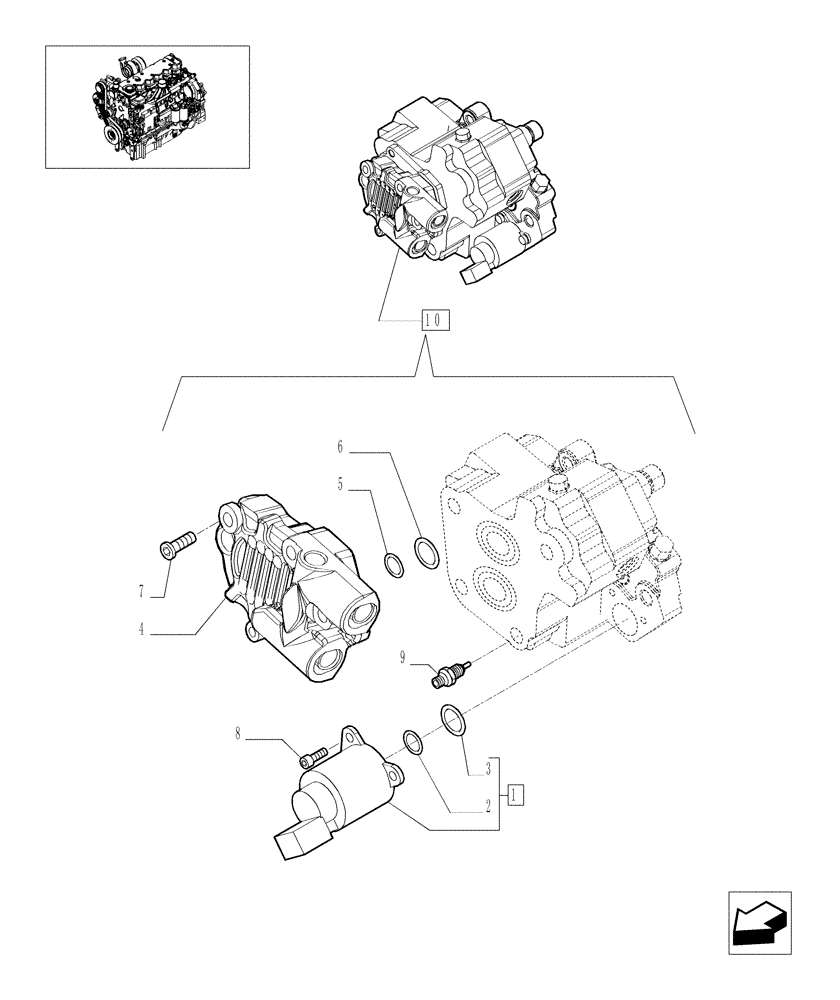

Схема запчастей Case IH PUMA 210 - (0.14.0/ A) - INJECTION PUMP - COMPONENTS (01) - ENGINE
10
4
7
3
8
2
5
1
6
9

Артикул

Название

Примечание

Количество

1

42541851

SOLENOID

ASSY

1шт.

2

42541850

O-RING

1шт.

3

42541849

O-RING

1шт.

4

42547619

FUEL PUMP

1шт.

5

42550488

O-RING

1шт.

6

42548060

O-RING

1шт.

7

42550487

SCREW

4шт.

8

42550932

SCREW

3шт.

9

42550486

VALVE

1шт.

10

4898921

FUEL INJECTION PUMP

1шт.

84385110R

REMAN-INJECTION PUMP

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All TRACTOR (1/07-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

*

Tier 3, Puma 195, Use w/ Eng. P/N 87312081 Tier 3, Puma 210, Use w/ Eng. P/N

1шт.

*

87312082 Tier 3, N.A. Only

1шт.

10

4898921R

REMAN-INJECTION PUMP

Puma 165, Use w/ Eng. P/N 87312079 Tier 3, Puma 180, Use w/ Eng. P/N 87312080

1шт.

10

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

Выбрано товаров: 16
