(1.93.3/ E[02]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN

Запчасти Case IH PUMA 210 (1.93.3/ E[02]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

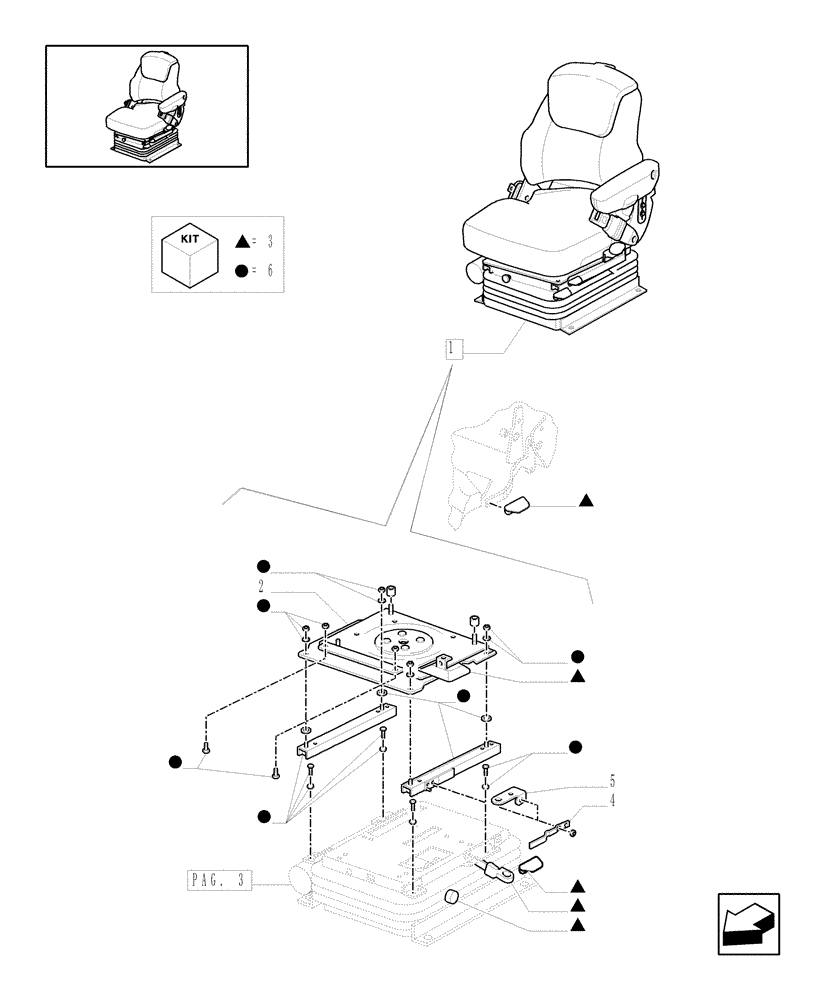

Схема запчастей Case IH PUMA 210 - (1.93.3/ E[02]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
2
6
6
1
6
pag. 3
3
3
6
6
3
6
6
4
3
6
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87567638

DRIVER SEAT

ASSY

1шт.

2

87529813

PIVOT PLATE

Swivel

1шт.

3

82020839

KIT

Knobs

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

47127902

SERVICE KIT

Lever, Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.

Выбрано товаров: 6
