Запчасти Case IH PUMA 210 (1.91.1/02) - FRONT HYDRAULIC LIFT AND FRONT POWER TAKE-OFF - SWITCHES AND CABLES (10) - OPERATORS PLATFORM/CAB

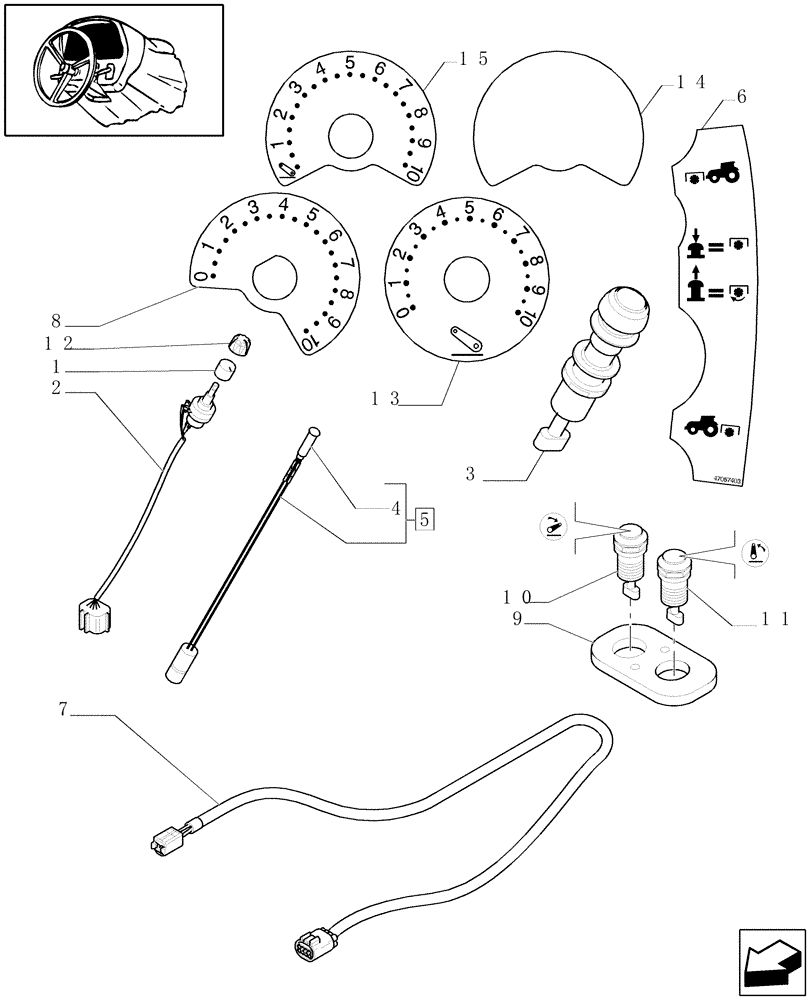

Схема запчастей Case IH PUMA 210 - (1.91.1/02) - FRONT HYDRAULIC LIFT AND FRONT POWER TAKE-OFF - SWITCHES AND CABLES (10) - OPERATORS PLATFORM/CAB
15
10
14
11
1
13
2
12
5
8
6
7
9
3
4

Артикул

Название

Примечание

Количество

1

47057589

BUTTON

EDC, Serial Range: -C5555

1шт.

2

82006115

POTENTIOMETER

1шт.

3

87311258

SWITCH ASSY

PTO Control, Serial Range: -C5577

1шт.

3

87605071

SWITCH ASSY

Front PTO, Start Serial: D5577

1шт.

4

47056319

WARNING LIGHT

1шт.

5

82036455

WARNING LIGHT

Includes Ref. 4

1шт.

6

87556490

DECAL

Control PTO (Frt & RR)

1шт.

7

87311800

WIRE HARNESS

1шт.

8

87750156

DECAL

Heightlimiter, Serial Range: -C5981

1шт.

9

87348408

MOUNTING PARTS

1шт.

10

87339137

SWITCH ASSY

Front Hitch Lower

1шт.

11

87339136

SWITCH ASSY

Front Hitch Raise

1шт.

12

87346620

KNOB

EDC, Start Serial: D5555

1шт.

13

87750157

COVER PLATE

, Serial Range: -C5981

1шт.

14

87498617

COVER PLATE

, Start Serial: D5981

1шт.

15

87498611

DECAL

, Start Serial: D5981

1шт.

Выбрано товаров: 16
