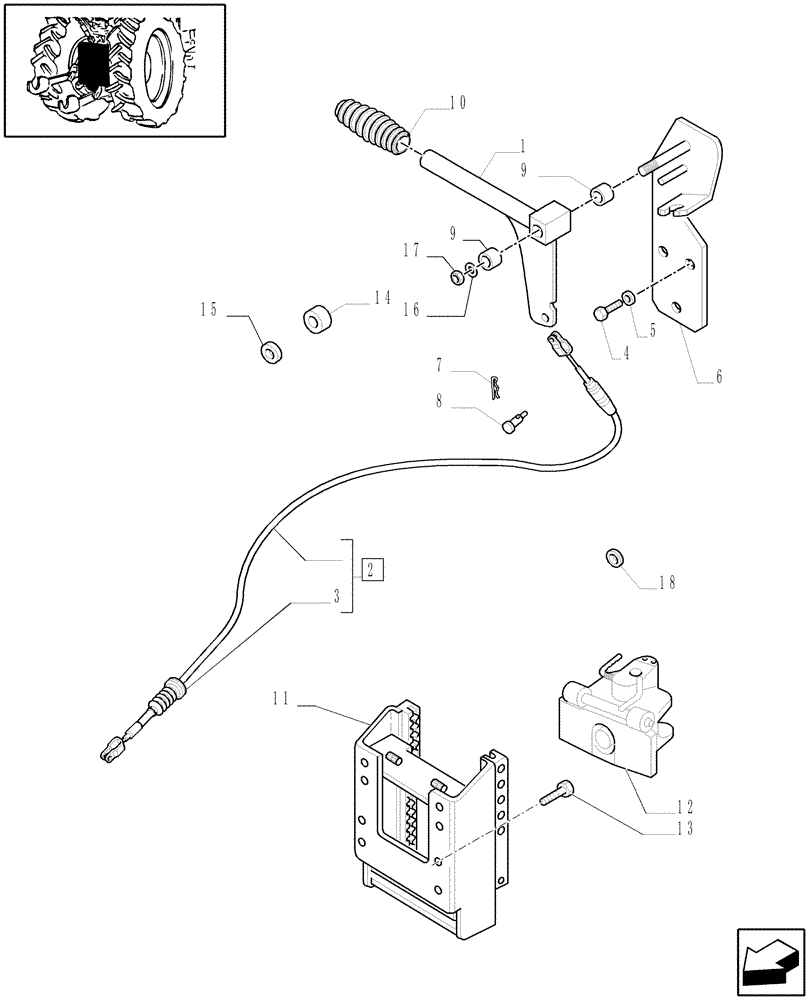

Запчасти Case IH PUMA 210 (1.89.5/01) - (VAR.897) SLIDER TOW HOOK W/AUTO SWIVEL COUPLING & CABLE, LESS SWINGING DRAWBAR - GERMAN TYPE (09) - IMPLEMENT LIFT

1

87665892

LEVER

1шт.

2

87308076

CABLE,2300mm L

Includes Ref. 3

1шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

87306928

SUPPORT

, Serial Range: -Z7BD01604

1шт.

6

87531029

SUPPORT

, Start Serial: Z7BD01605

1шт.

7

83957394

PIN,0.072" x 0.82"

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

1шт.

9

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

10

87666034

HANDLE GRIP

1шт.

11

82036271

FRAME

1шт.

12

82029387

TOW HOOK

TOW HOOK

1шт.

13

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

1шт.

14

87330878

CAP,9.50mm ID x 13.30

1шт.

14

87330882

CAP,End, 23.80mm ID x 25mm L

1шт.

15

81822628

CIRCLIP,1/2"

1шт.

16

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

17

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

18

10571371

LOCK WASHER,M4

2шт.
