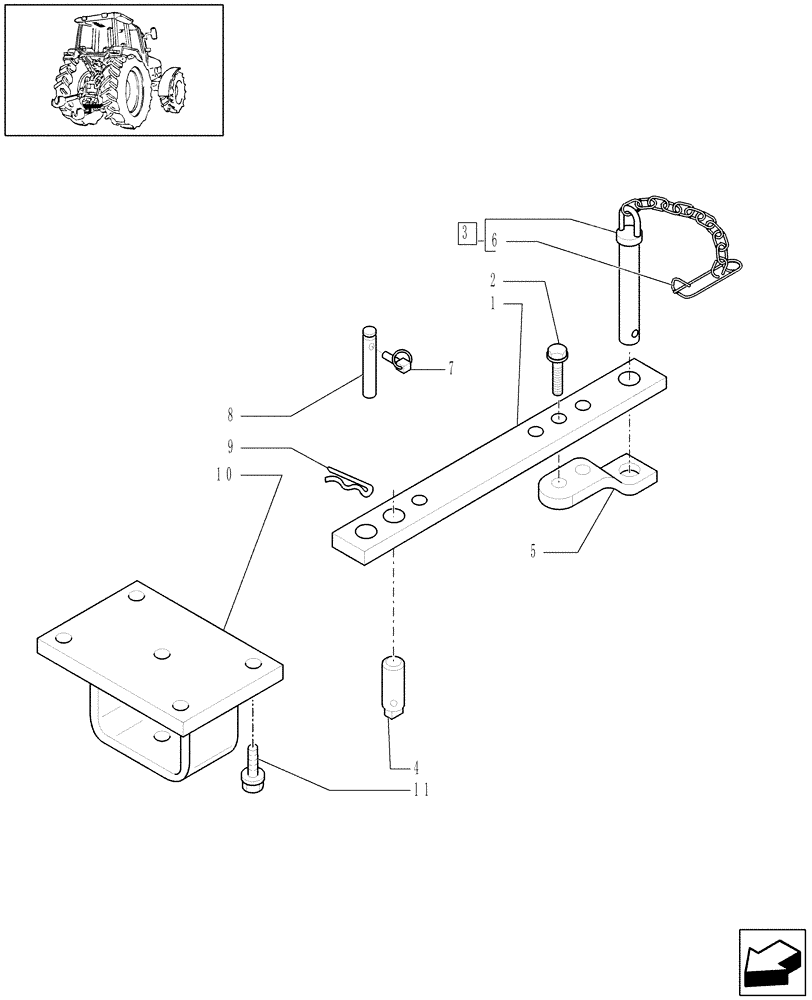

Запчасти Case IH PUMA 210 (1.89.0/03) - (VAR.913) SWINGING DRAWBAR FOR SLIDER TOW HOOK - ITALY (09) - IMPLEMENT LIFT

1

82035236

DRAWBAR

Includes Ref. 2, 5

1шт.

2

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

3

5162713

HITCH PIN,28mm OD x 711.5mm L

Includes Ref. 6

1шт.

4

82035744

PIN

1шт.

5

82026909

SUPPORT

1шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

82014909

LOCK PIN,5.5mm OD

2шт.

8

82015207

PIN,16mm OD x 141mm L

4шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

82035741

SUPPORT

1шт.

11

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

4шт.
