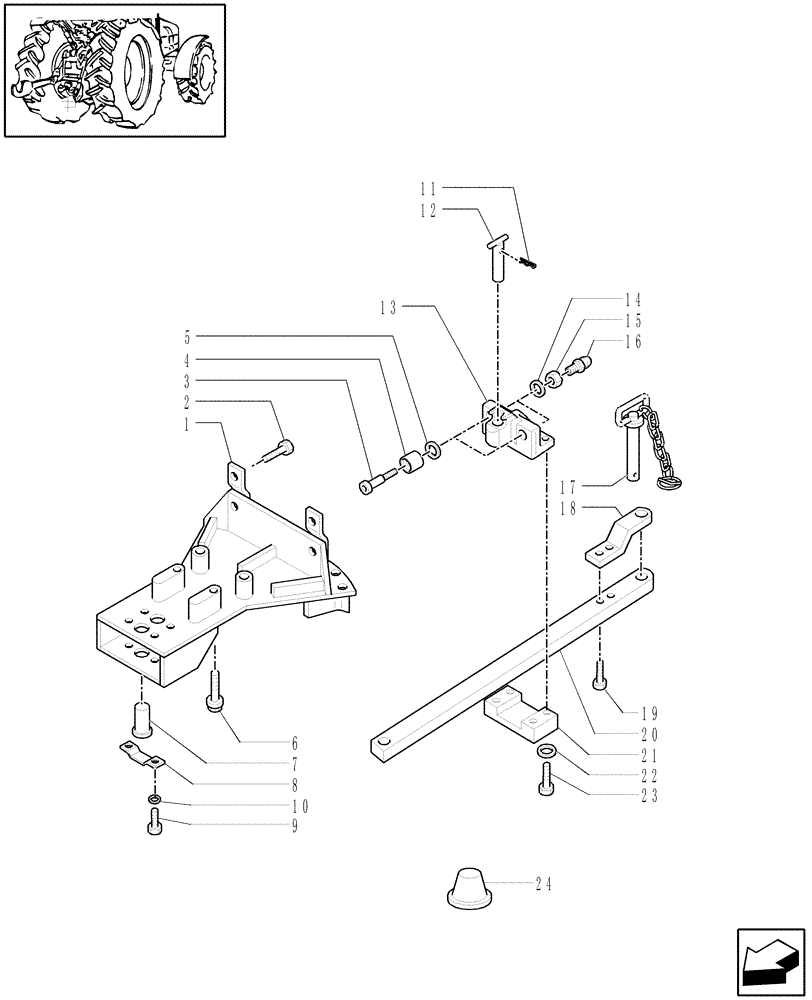

Запчасти Case IH PUMA 210 (1.89.0/01[01]) - (VAR.910) INDIPENDENT ROLLER SWINGING DRAWBAR - C6098 (09) - IMPLEMENT LIFT

1

82028925

HITCH BRACKET

1шт.

2

15984134

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

3

83954368

BOLT,28.05mm OD x 126.64mm L

2шт.

4

83954370

ROLLER,56.9mm OD x 60.2mm L

2шт.

5

83954373

WASHER,1.11" ID x 1.57" OD x 0.28" Thk

2шт.

6

82001975

BOLT,Flng, M18 x 1.5 x 80mm, Cl 12.9

4шт.

7

82014774

TOWBAR PIN,32mm OD x 93.5mm L

1шт.

8

82021060

PLATE

1шт.

9

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

11

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

12

82029383

PIN,26mm OD x 115.5mm L

1шт.

13

87693139

SUPPORT

1шт.

14

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

2шт.

15

83927122

NUT,Hex, 3/4"-16, 0.665" High, G5

2шт.

16

83416242

LUBE NIPPLE,Straight, 1/8"-27 x 0.66"

2шт.

17

83954379

HITCH PIN

1шт.

18

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

19

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

20

82027758

DRAWBAR

Incl. 18, 19

1шт.

21

82035866

PLATE

1шт.

22

10572174

LOCK WASHER,Helical Spring, 16.20mm ID x 27.40mm OD x 3.50mm, C72, DAC

4шт.

23

82934360

BOLT,Hex, 5/8" - 11 x 4", Gr 8

4шт.

24

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

6шт.
