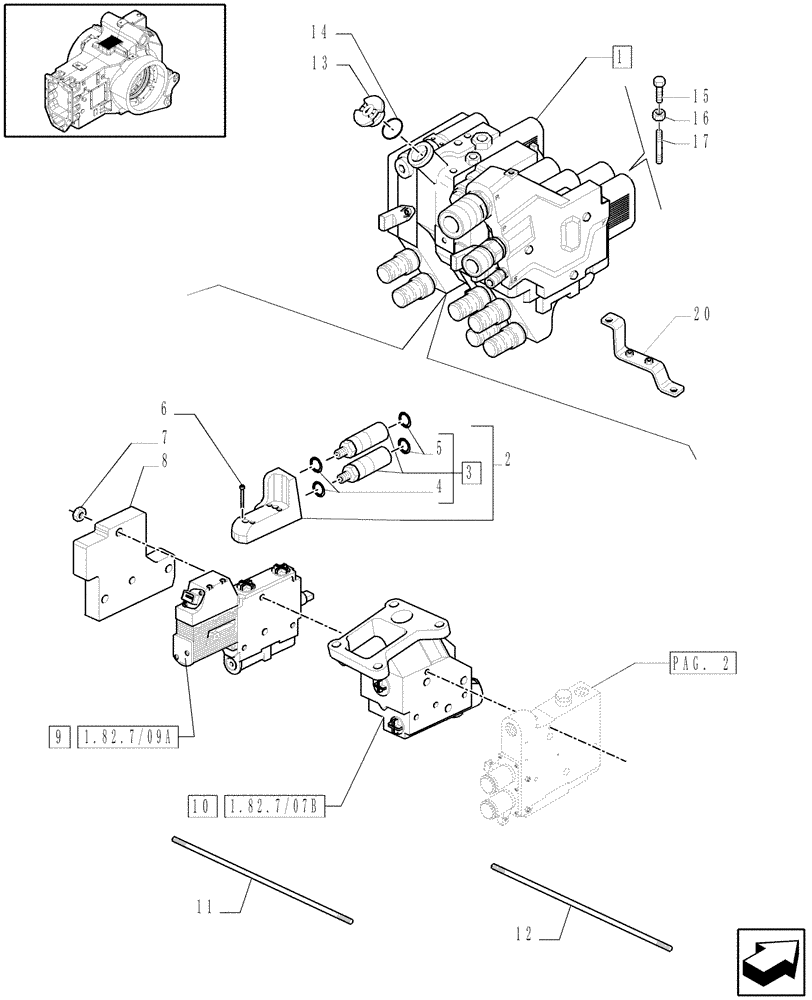

Запчасти Case IH PUMA 210 (1.82.7/09[01]) - (VAR.683) 3 X ELECTRONIC BOSCH REAR REMOTES (07) - HYDRAULIC SYSTEM

1

87311370

CONTROL VALVE

ASSY

1шт.

2

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY

1шт.

3

87381944

COUPLING, QUICK, FEM

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

87382012

SEAL KIT

2шт.

6

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

8шт.

7

5195169

NUT,M8

6шт.

8

5190710

PLATE

End

1шт.

9

87531906

HYD VALVE SECTION

ASSY

1шт.

84125295R

REMAN-HYD VALVE

PUMA 165,PUMA 180, PUMA 195, PUMA 210 all (1/07-) REMAN FOR NEW P/N 87531906

1шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

10

47136297

BODY

1шт.

11

47127002

TIE-ROD

1шт.

12

5195168

TIE-ROD,M8

2шт.

13

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

14

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

15

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

16

12164711

NUT,M10 x 1.25, Cl 8

2шт.

17

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.
