Запчасти Case IH PUMA 210 (1.82.7/01[01]) - (VAR.170) 3 X MECHANICAL CLOSED CENTER REMOTES (07) - HYDRAULIC SYSTEM

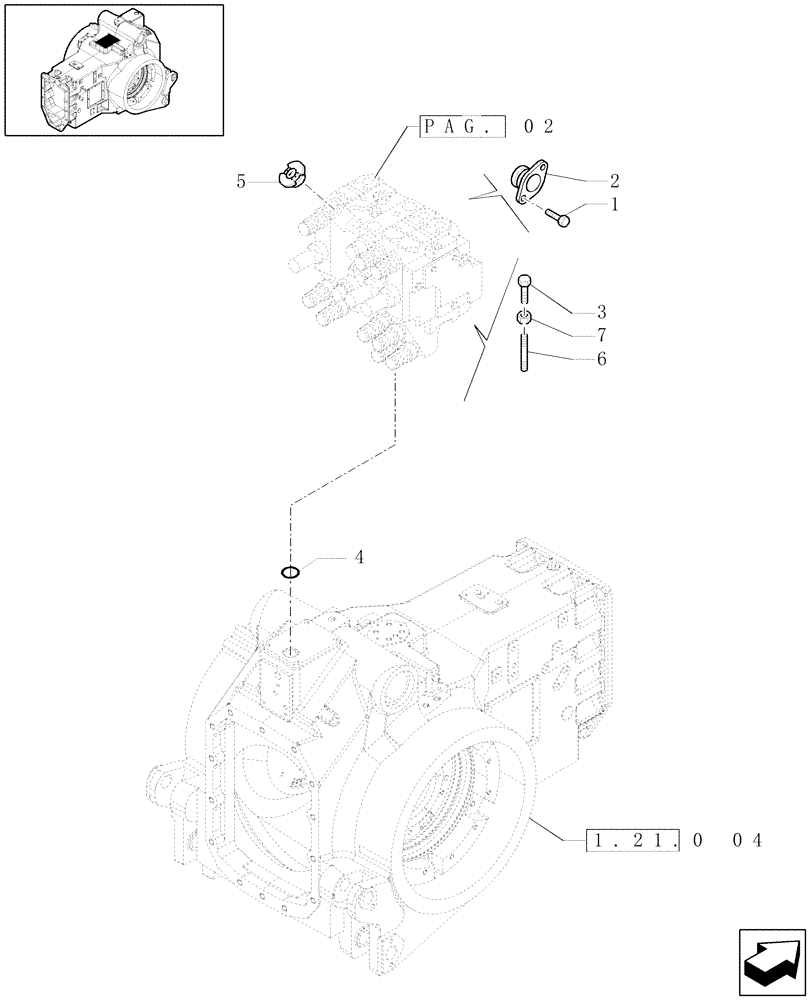

Схема запчастей Case IH PUMA 210 - (1.82.7/01[01]) - (VAR.170) 3 X MECHANICAL CLOSED CENTER REMOTES (07) - HYDRAULIC SYSTEM
3
1
7
pag. 02
1.21.0 04
2
4
6
5

Артикул

Название

Примечание

Количество

1

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

6шт.

2

5189606

SUPPORT

4шт.

3

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

4

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

5

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

6

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

7

12164711

NUT,M10 x 1.25, Cl 8

2шт.

Выбрано товаров: 7
