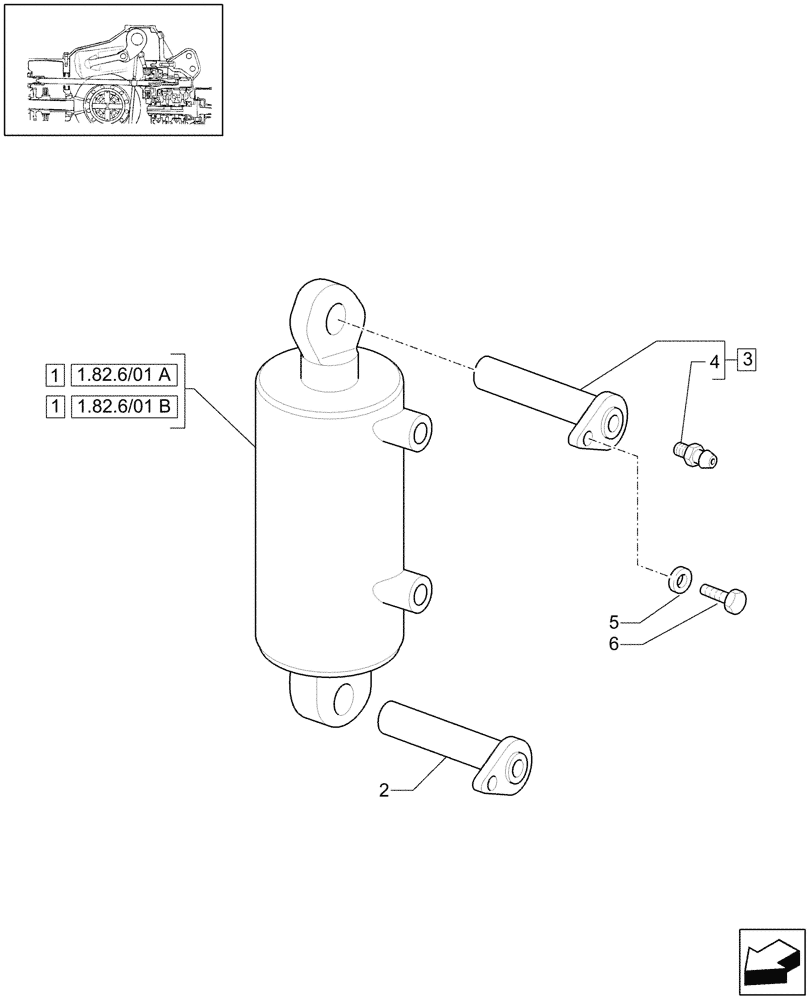

Запчасти Case IH PUMA 210 (1.82.6/01) - (VAR.232-886) HYDRAULIC POWER LIFT - LIFTER, PISTON AND CYLINDER (07) - HYDRAULIC SYSTEM

1

47130987

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 228mm Stroke

Dia.100 mm. and outside dia. 115 mm. , w/var.232

2шт.

1

47136721

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

Dia.90 mm. and outside dia. 105 mm. , w/var.886

2шт.

2

5185964

PIN,34.7mm OD x 132mm L

M15.54 x 2.62

2шт.

3

5186171

PIN

2шт.

4

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.
