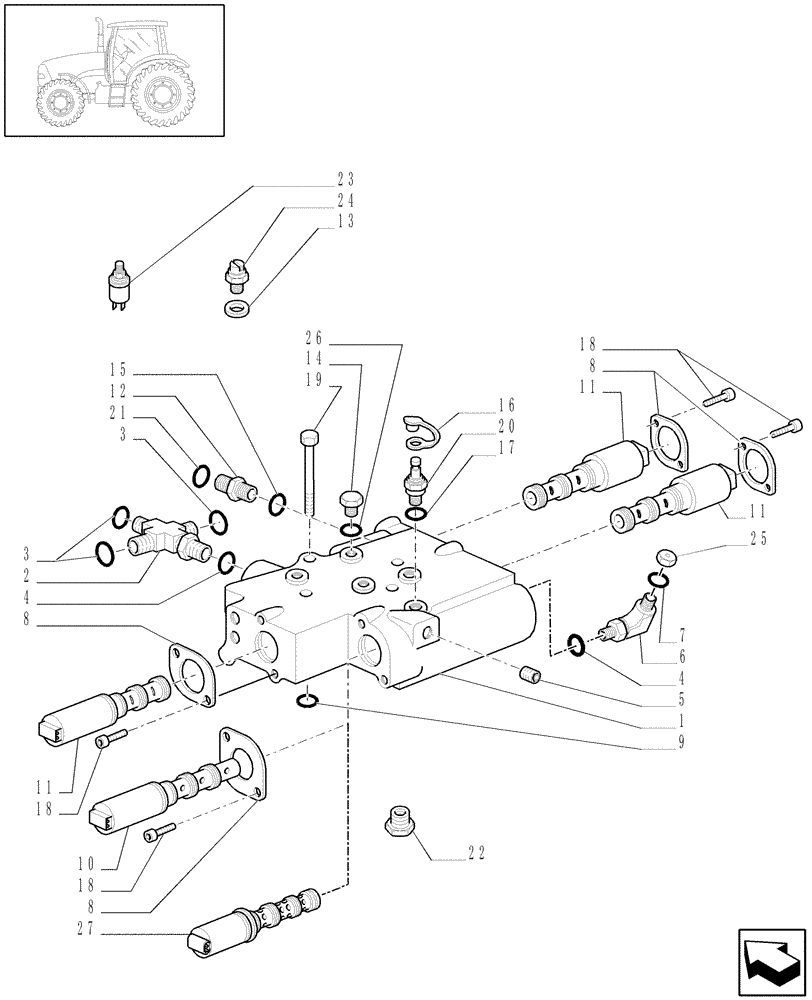

Запчасти Case IH PUMA 210 (1.80.7/01[02]) - (VAR.146) SUPP. GEAR REDUCTION UNIT FOR FULL POWER SHIFT - PTO CLUTCH - 4WD (07) - HYDRAULIC SYSTEM

1

87525228

DISTRIBUTOR

1шт.

2

5187063

HYD CONNECTOR

1"-14, M22X1,5, Incl.3,4

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

5шт.

6

5187063

HYD CONNECTOR

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

12.42 x 1.78

1шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

8

5194826

BRACKET

4шт.

9

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

7шт.

10

5196873

SOLENOID VALVE

132 mm, Serial Range: -C5599

1шт.

11

87723774

SOLENOID VALVE

114 mm, Serial Range: -C6743

3шт.

11

84276869

SOLENOID

, Start Serial: D6743

3шт.

12

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

11/16"-16, M16X1,5, Incl.15,21

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

14

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

18

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

19

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

20

5185423

COUPLING

1шт.

21

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

22

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

1шт.

23

82008236

SWITCH ASSY

1шт.

24

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

25

47123020

PLUG,Hex

1шт.

26

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

27

87624294

SOLENOID

, Start Serial: D5599

1шт.
