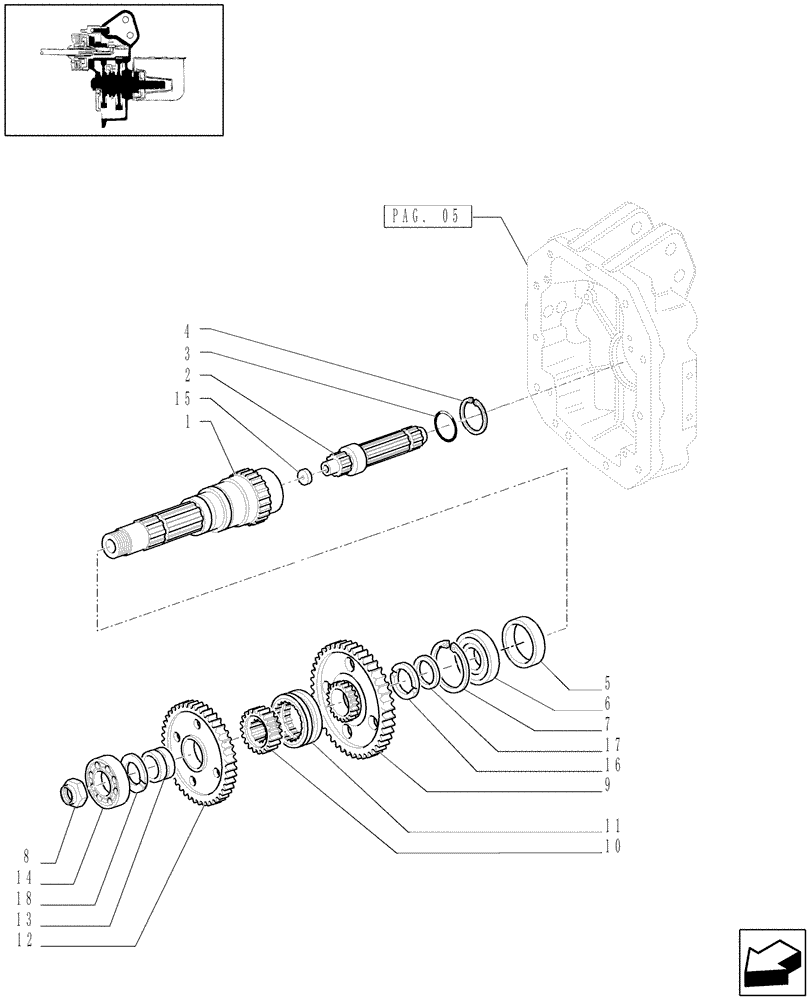

Запчасти Case IH PUMA 210 (1.80.1[02]) - POWER TAKE-OFF 540E/1000 RPM (07) - HYDRAULIC SYSTEM

1

47131841

SHAFT

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

2

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM, 21 teeth

1шт.

2

47132584

PTO SHAFT

1000 RPM, 20 teeth

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2.62X56.82

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

6

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70X125X24

1шт.

7

11076176

SNAP RING,M125, Int

1шт.

8

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

9

87387357

GEAR

540 RPM, Serial Range: -C5581

1шт.

9

87576355

GEAR

750 RPM, Serial Range: D5581-C5944

1шт.

9

87592699

DRIVING GEAR

750 rpm, Start Serial: D5944

1шт.

9

87600398

DRIVING GEAR

540 rpm, Start Serial: D5944

1шт.

W/VAR. 001 Only

1шт.

10

5151488

DRIVE BUSHING

, Serial Range: -C5944

1шт.

10

87578128

GEAR,21T Internal / 33T External

, Start Serial: D5944

1шт.

11

5129513

SYNCHRONIZER,24T

, Serial Range: -C5944

1шт.

11

87578126

SLEEVE,Z12

, Start Serial: D5944

1шт.

12

87386323

GEAR

1000 RPM, Serial Range: -C5581

1шт.

12

87576359

GEAR

1000 RPM, Serial Range: D5581-C5944

1шт.

12

87592698

DRIVING GEAR

1000 RPM, Start Serial: D5944

1шт.

13

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

14

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40X90X23

1шт.

15

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

16

47132124

CIRCLIP,M70

D=70

1шт.

17

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

D=70

1шт.

18

5182629

ANTI-WRAP PLATE

1шт.
