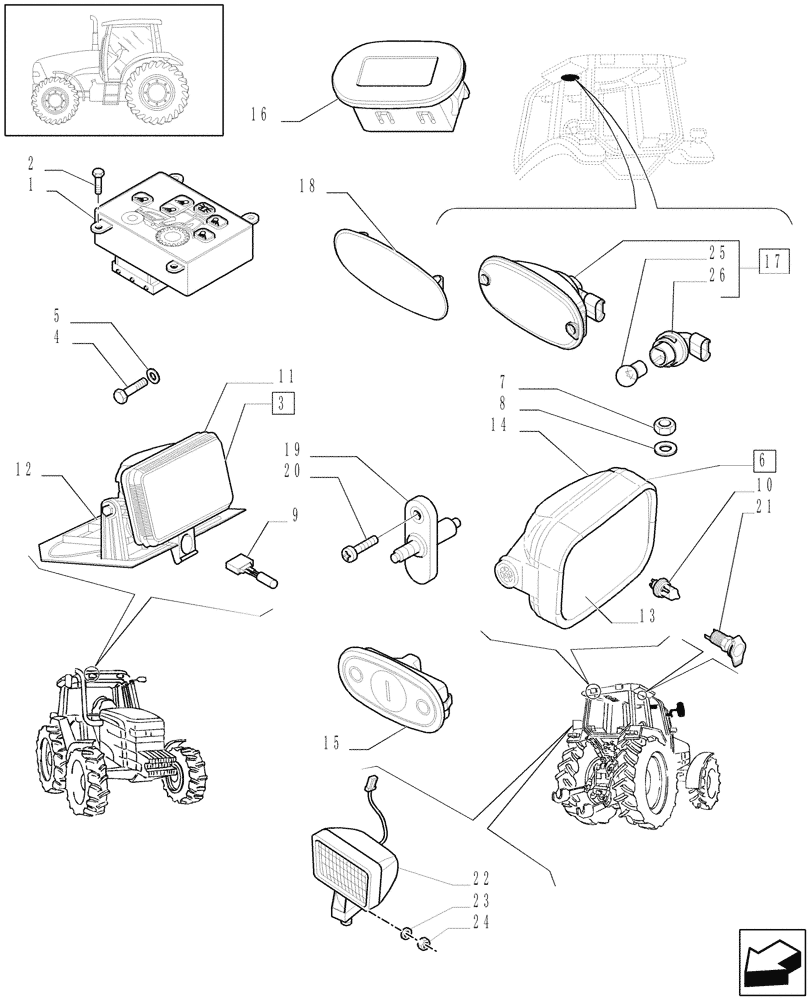

Запчасти Case IH PUMA 210 (1.75.6[02]) - WORKLAMPS AND CAB LIGHTING (06) - ELECTRICAL SYSTEMS

1

87355809

SWITCH ASSY

, Serial Range: -C6710

1шт.

1

87331993

ECU

Panel Worklamps, Start Serial: D6710

1шт.

2

15644001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

4шт.

3

82031073

WORK LAMP,Halogen, 12V, 50W, Clear

RH HEADLAMP ASSY, Incl. 9, 11, 12

1шт.

3

82031074

WORK LAMP

LH HEADLAMP ASSY, Incl. 9, 11, 12

1шт.

4

84193289

SCREW,Torx, Pan HD, M6 x 14mm, Cl 4.8

4шт.

5

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

6

87313318

WORK LAMP,Halogen, 12V, 55W, Clear

RH, Incl. 10, 13, 14

1шт.

6

87313317

WORK LAMP

LH, Incl. 10, 13, 14

1шт.

7

14048211

NUT,M8 x 1.25, Cl 8

2шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

44995162

BULB,T-3 1/4, 12.8V, 50W

2шт.

10

14151590

BULB,H3, 12V, 55W

2шт.

11

82031078

LIGHT ASSY.

2шт.

12

82031076

SUPPORT

RH

1шт.

12

82031077

MOUNTING PLATE

LH

1шт.

13

82017221

HEADLAMP LENS

2шт.

14

82022830

HOUSING

2шт.

15

82036605

INTERIOR LIGHT,Halogen, 12V, 10W

1шт.

16

82022834

LAMP,12V

1шт.

17

82034163

CEILING LAMP

, Serial Range: -C6560

1шт.

17

87301963

CEILING LAMP,12V

Incl. 25, 26, Start Serial: D6560

1шт.

18

87369948

PLATE

1шт.

19

82034339

SWITCH ASSY

Interior Lamp

2шт.

20

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

2шт.

21

84191453

SOCKET,12/24V, 20A

2шт.

22

87733060

WORK LAMP,Halogen, 12V, 55W, Clear

1шт.

9703399

BULB,H3, 12V, 55W

1шт.

23

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

24

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

25

14149590

BULB,12V, 10W

12V

1шт.

26

87304554

HOLDER

12V, 21W

1шт.
