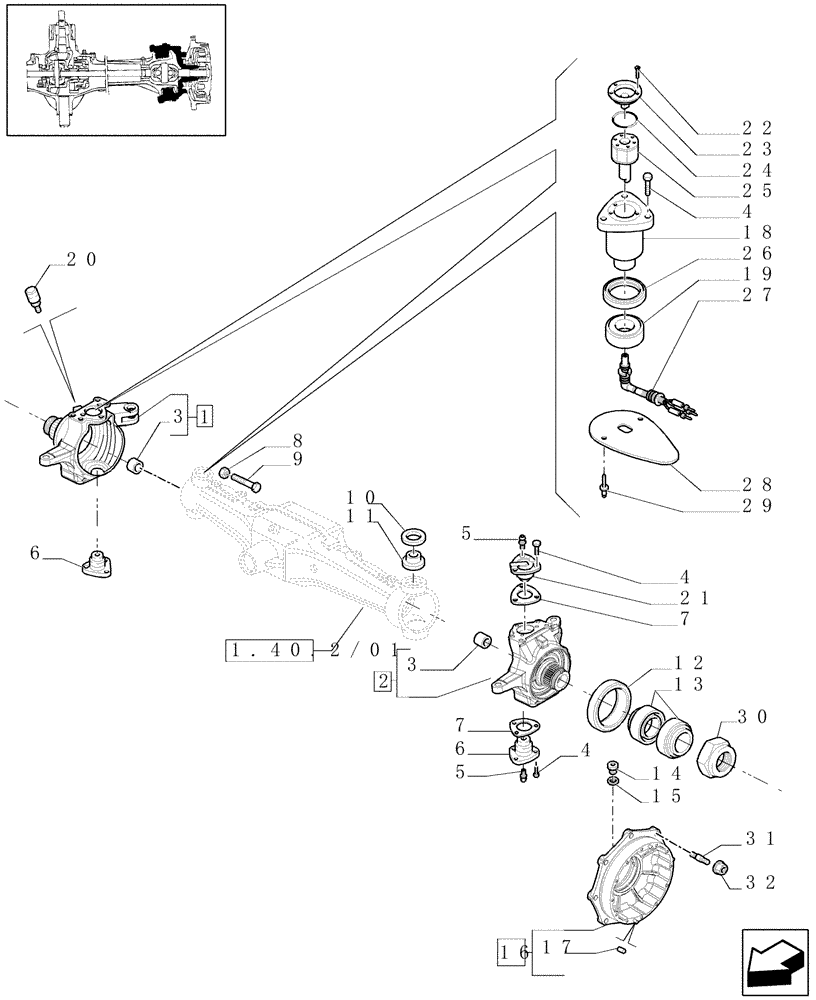

Запчасти Case IH PUMA 210 (1.40.2/02) - (VAR.463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - STEERING KNUCKLES & HUBS (04) - FRONT AXLE & STEERING

1

87345382

KNUCKLE,RH

RH, Serial Range: -C6353

1шт.

1

84188828

KNUCKLE,RH

RH, Start Serial: D6353

1шт.

2

87345376

STUB AXLE/STEERING S,LH

LH, Serial Range: -C6353

1шт.

2

84188825

KNUCKLE,LH

LH, Start Serial: D6353

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

M14 x 1.5 x 30

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

M18 x 120

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190X220X15/17

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538X158.750X23.02

4шт.

14

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

15

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

16

87543151

HUB

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87345372

BALL STUD

BALL PIN

1шт.

19

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

20

13413290

BREATHER

2шт.

21

87382381

BALL STUD

BALL PIN

1шт.

22

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

23

87309292

PIN

, Serial Range: -C5731

1шт.

23

87574551

PIN

, Start Serial: D5731

1шт.

24

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

25

87303761

SENSOR

Steering, Serial Range: -C5735

1шт.

25

87612538

SENSOR

Steering, Serial Range: D5735-C5731

1шт.

25

87627614

SENSOR

, Start Serial: D5731

1шт.

26

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

27

87303770

ELEC CONNECTOR

, Serial Range: -C5731

1шт.

27

87627624

ELEC CONNECTOR,Male

, Serial Range: D5731-C5880

1шт.

27

87635259

ELEC CONNECTOR,Male

, Start Serial: D5880

1шт.

28

87315098

SHIELD

1шт.

29

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

30

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

31

87618916

STUD

16шт.

32

87678013

NUT,M16 x 1.5

M16 x 1.5

16шт.
