Запчасти Case IH PUMA 210 (1.40.1/13[02]) - (VAR.195-212) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING

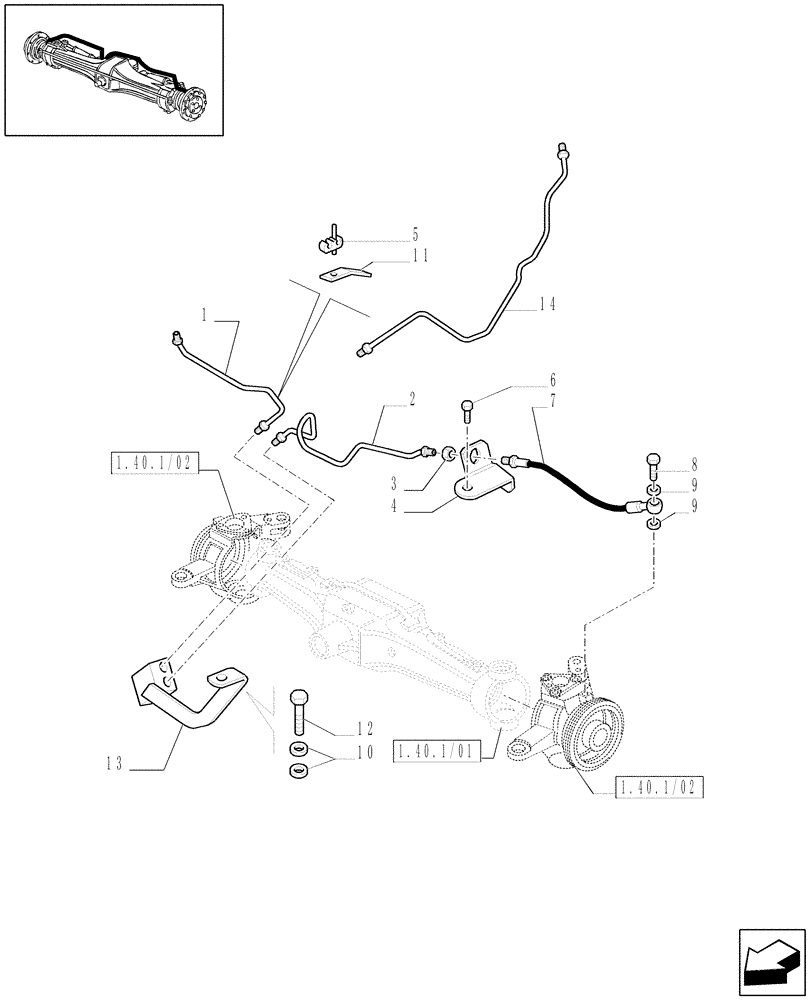

Схема запчастей Case IH PUMA 210 - (1.40.1/13[02]) - (VAR.195-212) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING
12
5
4
1.40.1/01
1.40.1/02
1.40.1/02
13
11
2
9
9
10
6
14
8
7
1
3

Артикул

Название

Примечание

Количество

1

87592837

TUBE,4.76 mm ID

RH

1шт.

W/Equip. 192 only

1шт.

1

87592861

RIGID TUBE,4.76 mm ID

RH

1шт.

W/Equip. 212 only

1шт.

2

87592824

TUBE,4.76 mm ID

LH

1шт.

W/Equip. 192 only

1шт.

2

87592869

RIGID TUBE,4.76 mm ID

LH, Serial Range: -C5867

1шт.

W/Equip. 212 only

1шт.

3

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.

4

5182969

BRACKET

LH

1шт.

5

14575380

CLIP,4.8mm ID

1шт.

6

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

3шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

, Serial Range: -C5741

2шт.

7

87655385

FLEXIBLE HOSE

, Start Serial: D5741

1шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

11

5182997

RETAINER COLLAR

1шт.

12

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

13

5182950

BRACKET

1шт.

14

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

15

14575380

CLIP,4.8mm ID

1шт.

16

87730130

RIGID TUBE

LH, Start Serial: D5867

1шт.

W/Equip. 212 only

1шт.

Выбрано товаров: 24
