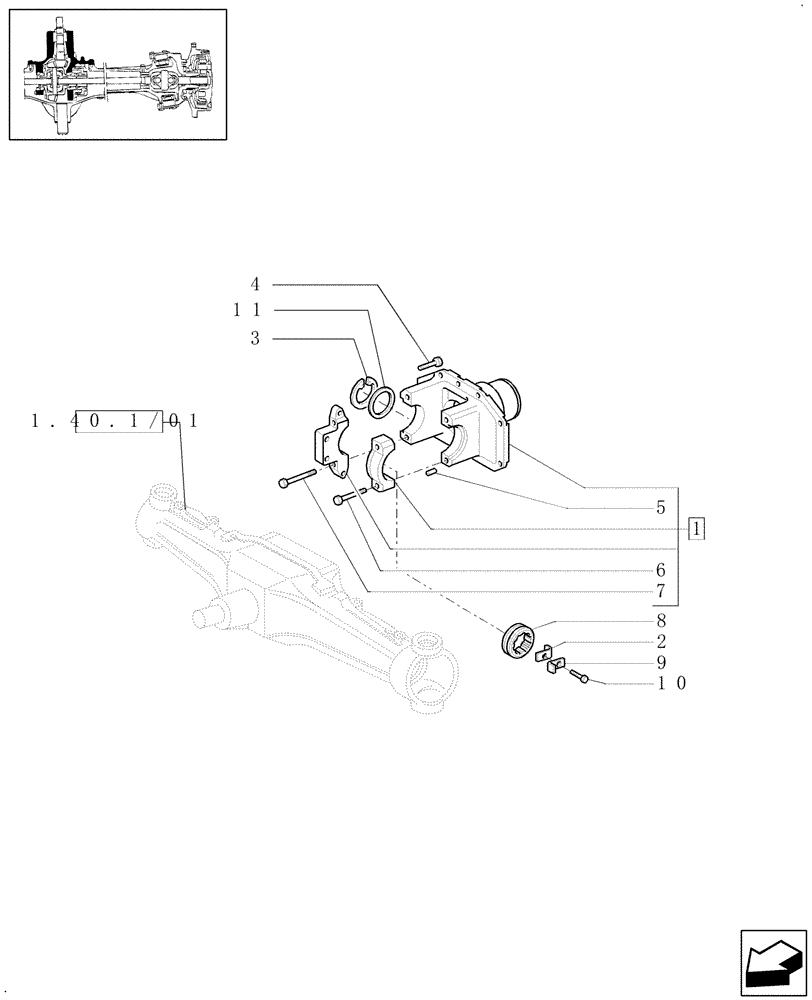

Запчасти Case IH PUMA 210 (1.40.1/05) - (VAR.195-212) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK - SUPPORT (04) - FRONT AXLE & STEERING

1

87345410

SUPPORT

1шт.

2

4966243

ADJUSTING PLATE

1шт.

3

11075476

SNAP RING,M110, Int

1шт.

4

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

14шт.

5

4966530

DOWEL

M6 x 18

4шт.

6

14255331

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

M14X1,5X75

2шт.

7

14255731

LOCK BOLT,Hex, M14 x 1.5 x 90mm, Cl 10.9

14шт.

8

5110423

RING NUT

M115 x 15

1шт.

9

562659

PLATE

1шт.

10

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

11

5135019

SHIM,98.8mm ID x 109.8mm OD x 1mm Thk

1шт.

11

5135020

SHIM,98.8mm ID x 109.8mm OD x 1.1mm Thk

1шт.

11

5135021

SHIM,98.8mm ID x 109.8mm OD x 1.2mm Thk

1шт.

11

5135022

SHIM,98.8mm ID x 109.8mm OD x 1.3mm Thk

1шт.

11

5135023

SHIM,98.8mm ID x 109.8mm OD x 1.4mm Thk

1шт.

11

5135024

SHIM,98.8mm ID x 109.8mm OD x 1.5mm Thk

1шт.

11

5135025

SHIM,98.8mm ID x 109.8mm OD x 1.6mm Thk

1шт.

11

5135026

SHIM,98.8mm ID x 109.8mm OD x 1.7mm Thk

1шт.

11

5135027

SHIM,98.8mm ID x 109.8mm OD x 1.8mm Thk

1шт.

11

5135028

SHIM,98.8mm ID x 110mm OD x 1.9mm Thk

1шт.

11

5135029

SHIM,2mm Thk

1шт.
