Запчасти Case IH PUMA 210 (1.40.1/02) - (VAR.195-212) 4WD FRONT AXLE WITH SUSPENSIONS,BRAKE,"TERRALOCK"- STEERING PIVOT PINS (04) - FRONT AXLE & STEERING

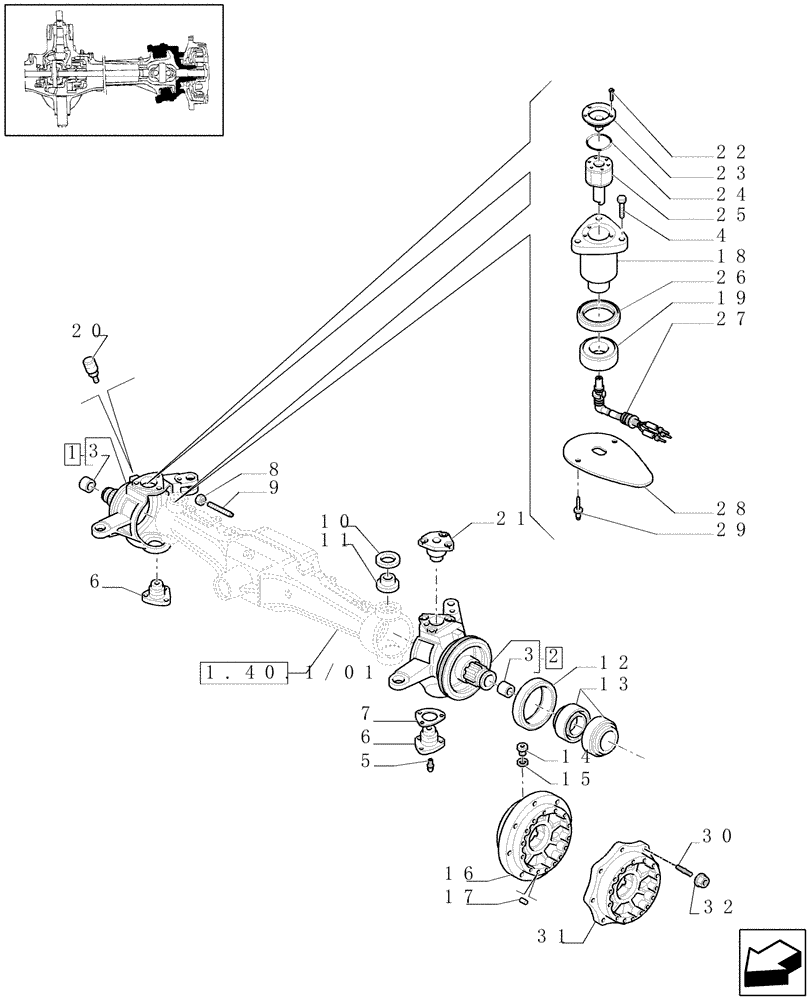

Схема запчастей Case IH PUMA 210 - (1.40.1/02) - (VAR.195-212) 4WD FRONT AXLE WITH SUSPENSIONS,BRAKE,"TERRALOCK"- STEERING PIVOT PINS (04) - FRONT AXLE & STEERING
12
2
6
18
17
20
9
4
32
3
11
21
1
29
19
1.40.1/01
22
8
27
6
13
25
16
31
7
28
24
10
30
3
15
23
26
14
5

Артикул

Название

Примечание

Количество

1

87382410

STEERING KNUCKLE

RH, Serial Range: -C6353

1шт.

1

84188846

STEERING KNUCKLE

RH, Start Serial: D6353

1шт.

2

87382403

STEERING KNUCKLE

LH, Serial Range: -C6353

1шт.

2

84188851

STEERING KNUCKLE

LH, Start Serial: D6353

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5183844

SEAL

190X220X14,5-18, Serial Range: -C5801

2шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190X220X15/17, Start Serial: D5801

2шт.

13

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

4шт.

14

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

15

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

16

87543143

HUB

Incl.15, 17, 30, Serial Range: -C5563

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87345372

BALL STUD

BALL PIN

1шт.

19

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

20

13413290

BREATHER

2шт.

21

87382381

BALL STUD

BALL PIN

1шт.

22

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

23

87309292

PIN

, Serial Range: -C5731

1шт.

23

87574551

PIN

, Start Serial: D5731

1шт.

24

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

25

87303761

SENSOR

Steering, Serial Range: -C5735

1шт.

25

87612538

SENSOR

Steering, Serial Range: D5735-C5731

1шт.

25

87627614

SENSOR

, Start Serial: D5731

1шт.

26

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

27

87303770

ELEC CONNECTOR

, Serial Range: -C5731

1шт.

27

87627624

ELEC CONNECTOR,Male

, Serial Range: D5731-C5880

1шт.

27

87635259

ELEC CONNECTOR,Male

, Start Serial: D5880

1шт.

28

87315098

SHIELD

1шт.

29

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

30

87537833

STUD

, Serial Range: -C5831

8шт.

30

87618916

STUD

, Start Serial: D5831

16шт.

31

87600174

HUB

Incl.17, 30, Start Serial: D5563

2шт.

32

87678013

NUT,M16 x 1.5

M16 x 1.5

16шт.

Выбрано товаров: 42
