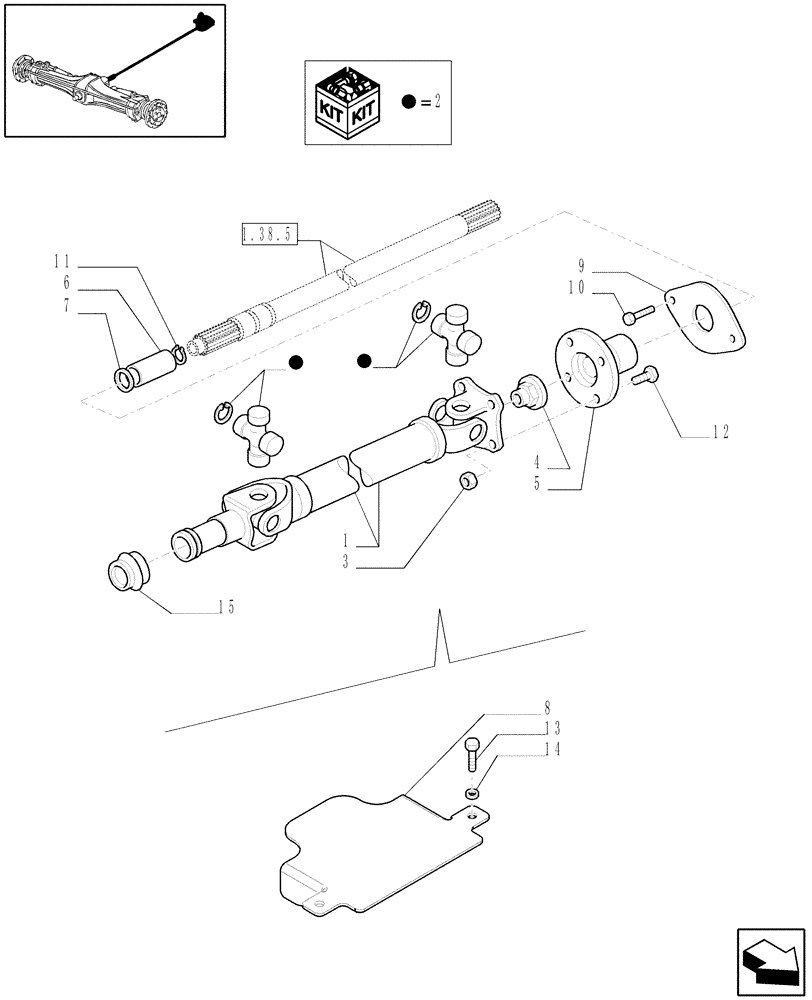

Запчасти Case IH PUMA 210 (1.38.5/01) - (VAR.212-463) 4WD AXLE WITH ACTIVE SUSPENSIONS, FULL POWER SHIFT - DRIVE SHAFT (04) - FRONT AXLE & STEERING

1

87536941

DRIVE SHAFT

, Serial Range: -C5743

1шт.

1

87664855

DRIVE SHAFT

Incl. 2,15, Start Serial: D5743

1шт.

2

82021088

KIT

, Serial Range: -C5743

2шт.

2

87393885

SPIDER

, Start Serial: D5743

1шт.

3

82936516

LOCK NUT,7/16"-20

8шт.

4

5111953

NUT,M24 x 1.5

M24 x 20, Start Serial: D5536

1шт.

5

87527323

FLANGE

Incl. 12, Serial Range: -C5569

1шт.

5

87621411

FLANGE

Incl. 12, Start Serial: D5569

1шт.

6

47135384

SPLINED COUPLING,12T

1шт.

7

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1.0 mm

1шт.

7

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

7

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

7

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

7

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

7

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

7

4994071

SHIM,34.60mm ID x 48.00mm OD x 3.70mm T

SPARE PART

1шт.

7

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

7

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

7

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1.2 mm

1шт.

7

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1.5 mm

1шт.

7

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1.8 mm

1шт.

7

5118726

SHIM,34.60mm ID x 48.00mm OD x 2.00mm T

SPARE PART SHIM, MM 2,0

1шт.

8

82037903

GUARD

LH

1шт.

9

5186750

FLANGE

1шт.

10

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

12

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

4шт.

13

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

2шт.

14

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

15

84153203

BELLOWS

1шт.
