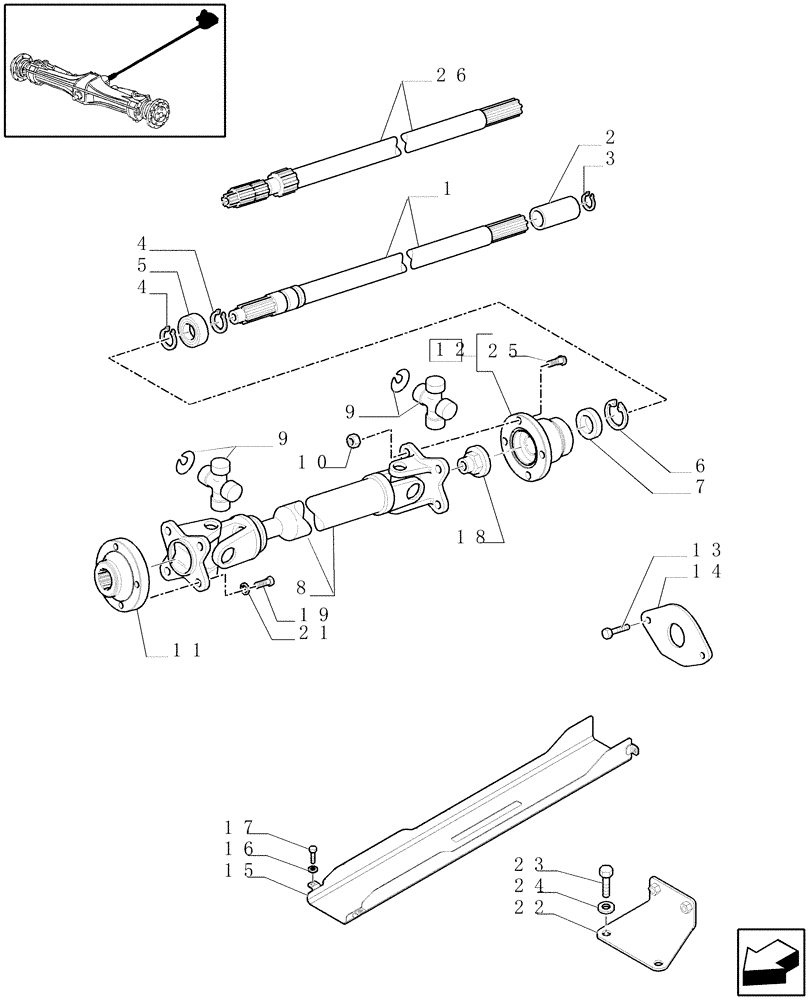

Запчасти Case IH PUMA 210 (1.38.5) - FRONT AXLE PROPELLER SHAFT (4WD) (04) - FRONT AXLE & STEERING

1

47135375

DRIVE SHAFT

, Serial Range: -C5582

1шт.

2

5172239

SPLINED COUPLING,12T

80.5 mm lg - Rear

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

40 x 80 x 14/15

1шт.

8

87592297

DRIVE SHAFT

Includes Ref. 9

1шт.

9

87530319

SPIDER

2шт.

10

82936516

LOCK NUT,7/16"-20

8шт.

11

87309421

FLANGE

With threaded holes for bolts

1шт.

12

47135489

SPLINED COUPLING

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

14

47135527

FLANGE

1шт.

15

87389039

SHIELD

1шт.

16

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

17

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

M8 x 1.25 x 16

4шт.

18

5111953

NUT,M24 x 1.5

M24 x 20

1шт.

19

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

4шт.

20

47135379

SPACER,34.6mm ID x 45mm OD x 26mm L

1шт.

21

83935787

LOCK WASHER,7/16"

4шт.

22

82036676

BRACKET

1шт.

23

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

24

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

25

87550808

PIN,12.5mm OD x 37mm L

4шт.

26

87599004

DRIVE SHAFT

, Start Serial: D5582

1шт.
