Запчасти Case IH PUMA 210 (1.33.3[02]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING

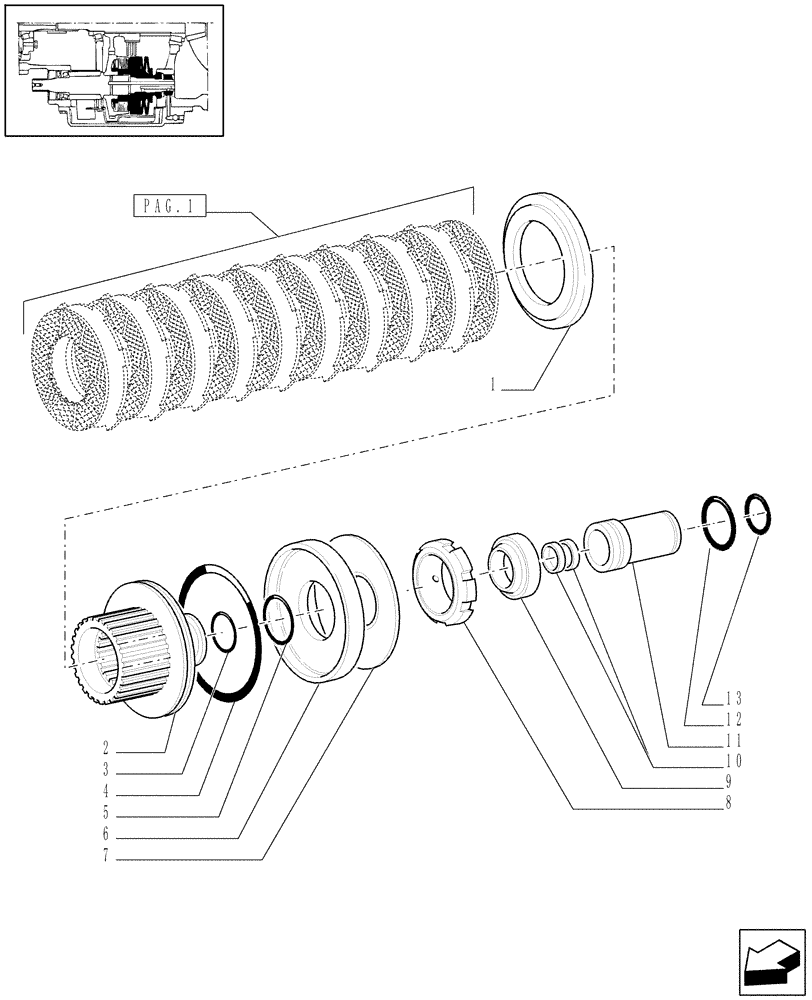

Схема запчастей Case IH PUMA 210 - (1.33.3[02]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING
3
13
5
9
6
pag.1
7
8
12
2
10
4
11
1

Артикул

Название

Примечание

Количество

1

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

2

5195122

HUB

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

5

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

6

5193859

PISTON

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

6

47128251

PISTON

1шт.

Only For PUMA 210 Models

1шт.

7

89845126

BELLEVILLE SPRING

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

7

47127780

BELLEVILLE SPRING,75mm ID x 161.4mm OD x 4.4mm Thk

1шт.

Only For PUMA 210 Models

1шт.

8

5193860

NUT,Rd, M58,1.5mm Pitch

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

8

84208962

NUT,Round, M58 x 1.5, 23.6 Thd

1шт.

Only For PUMA 210 Models

1шт.

9

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

10

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

2шт.

11

5195345

MANIFOLD

1шт.

12

14459181

O-RING,45.69mm ID x 2.62" Width

1шт.

13

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

Выбрано товаров: 22
