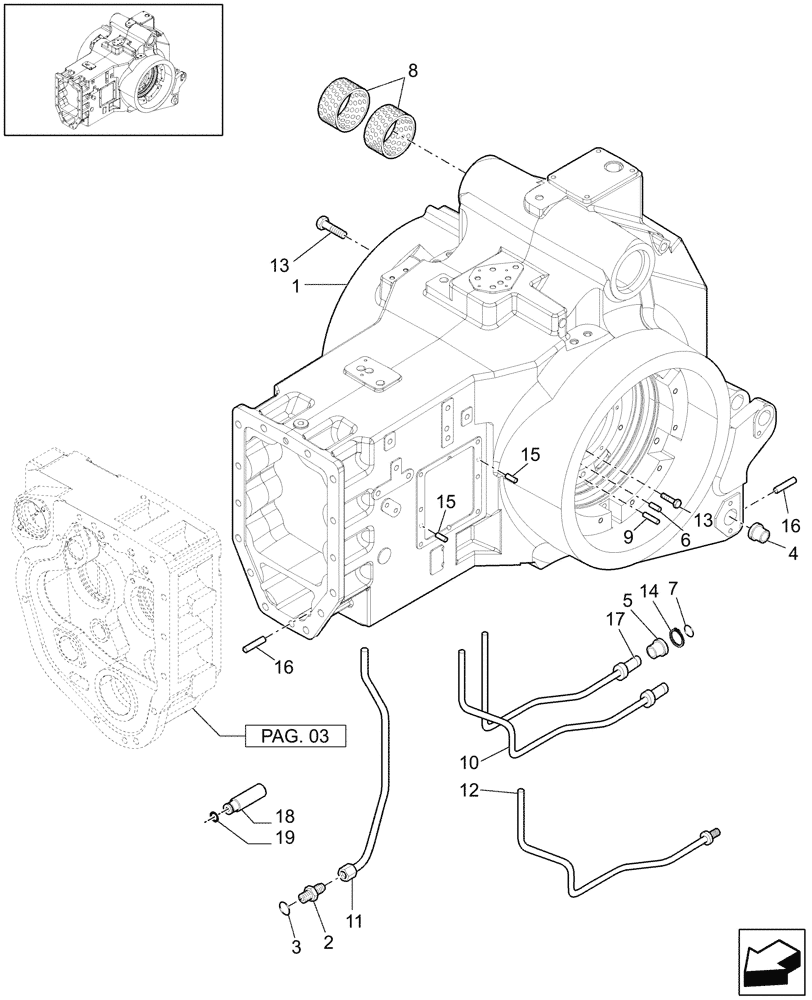

Запчасти Case IH PUMA 210 (1.21.0[04]) - CENTRAL HOUSING / TRANSMISSION BOX (03) - TRANSMISSION

1

47136149

HOUSING

, Serial Range: -C6479

1шт.

1

84219615

HOUSING

, Serial Range: D6479-C6823

1шт.

1

84312721

HOUSING

, Start Serial: D6823

1шт.

2

5154713

HYD CONNECTOR

Incl. 3

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

5

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

, Serial Range: -C6806

3шт.

5

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

, Start Serial: D6806

3шт.

6

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

6шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

8

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

9

5187995

GUIDE PIN,15mm OD x 65mm L

M15 x 65

6шт.

10

47126684

TUBE

Lubrification PTO, Serial Range: -C6479

1шт.

10

84221770

TUBE,12 mm OD

Lubrification PTO, Serial Range: D6479-C6806

1шт.

10

84271077

TUBE

, Start Serial: D6806

1шт.

11

5198507

TUBE

4WD

1шт.

12

5195176

TUBE

Brake PTO, Serial Range: -C6806

1шт.

12

84269540

TUBE

, Start Serial: D6806

1шт.

13

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

300625

SNAP RING,M16, Ext

, Serial Range: -C6806

3шт.

14

84268818

SNAP RING

, Start Serial: D6806

3шт.

15

10839710

DOWEL,M10 x 15.00mm

2шт.

16

4985062

DOWEL,15mm OD x 25mm L

4шт.

17

5195175

TUBE

Supply Rear PTO Clutch, Serial Range: -C6479

1шт.

17

84215874

TUBE,10 mm ID x 12 mm OD

Supply Rear PTO Clutch, Serial Range: D6479-C6806

1шт.

17

84269541

TUBE

, Start Serial: D6806

1шт.

18

84226973

HYD TUBE,10 mm ID x 20 mm OD x 80.5 mm L

, Start Serial: D6479

2шт.

19

14453181

O-RING,0.489" ID x 0.07" Width

, Start Serial: D6479

2шт.
