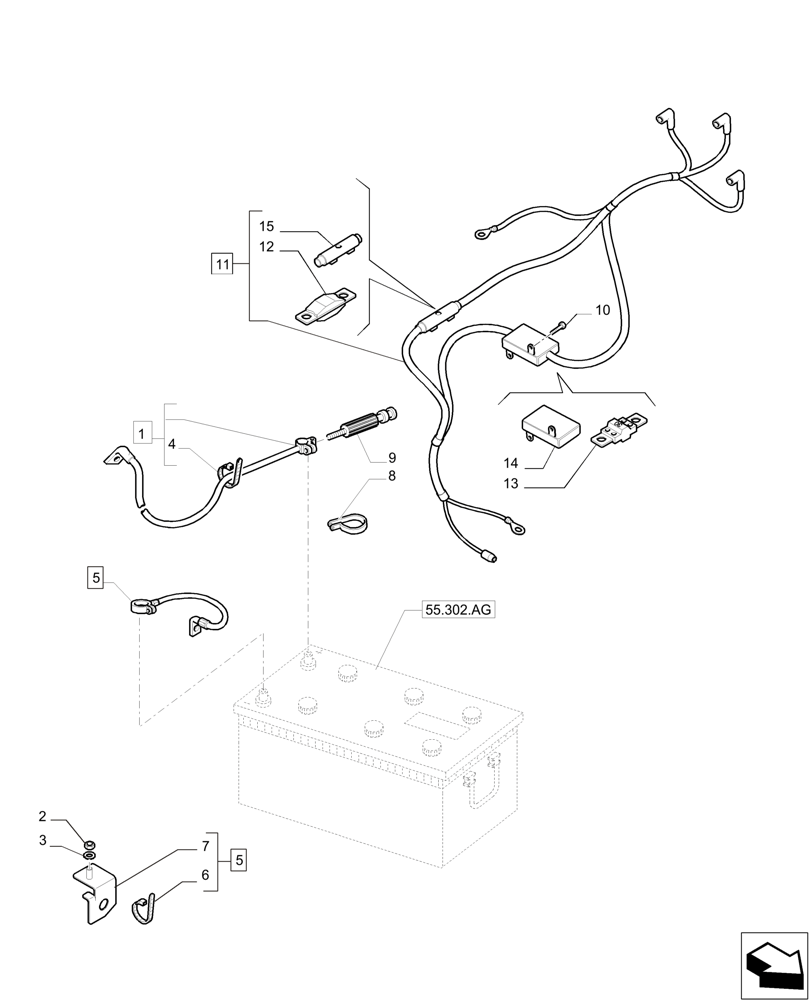

Запчасти Case IH PUMA 200 (55.302.AV) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

87324238

POS BATTERY CABLE,1290mm L

Incl 4

1шт.

2

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

4

82001040

CABLE TIE,.19" x 11.5"

1шт.

5

87391337

NEG BATTERY CABLE

Incl 6, 7

1шт.

6

83933061

STRAP

3шт.

7

87395437

BRACKET

1шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

10

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

11

84245746

WIRE HARNESS

Incl 12, 15

1шт.

12

82033972

FUSE,250A

250A

1шт.

13

87390344

FUSE,30A, MIDIVAL

30A

1шт.

14

76045724

FUSE HOLDER

30A

1шт.

15

82027575

FUSE HOLDER

250A

1шт.
