(55.020.AB[02]) - POWER TAKE-OFF SENSORS AND SWITCHES

Запчасти Case IH PUMA 200 (55.020.AB[02]) - POWER TAKE-OFF SENSORS AND SWITCHES (55) - ELECTRICAL SYSTEMS

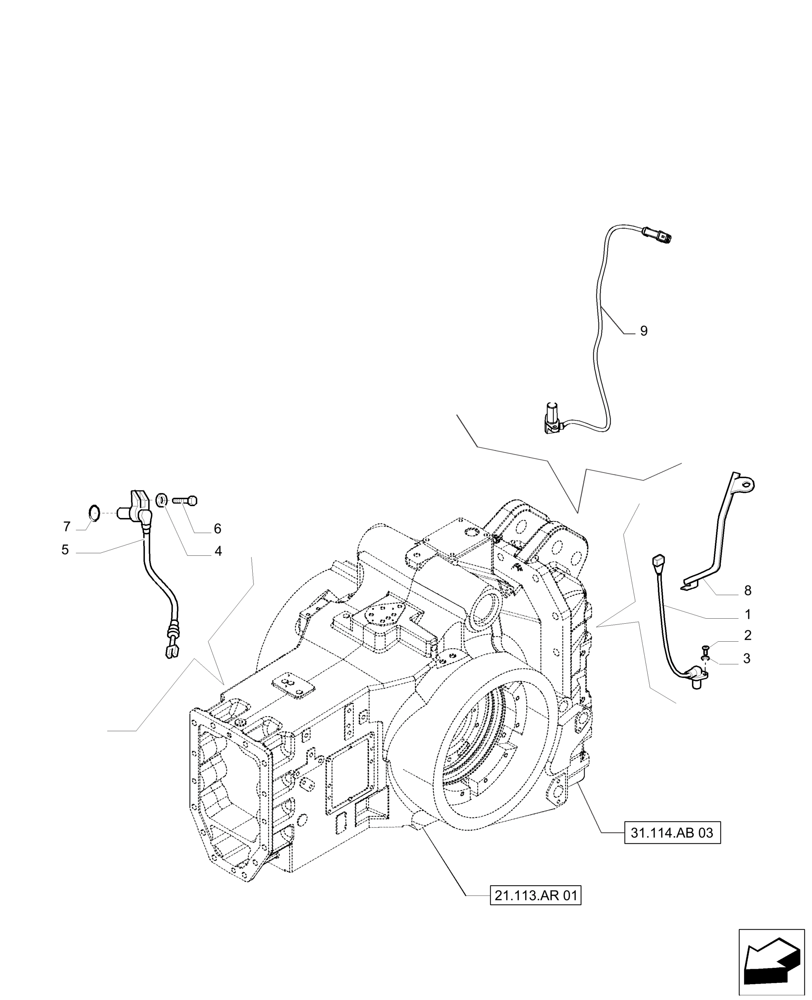

Схема запчастей Case IH PUMA 200 - (55.020.AB[02]) - POWER TAKE-OFF SENSORS AND SWITCHES (55) - ELECTRICAL SYSTEMS
21.113.ar 01
5
8
7
2
9
3
1
4
6
31.114.ab 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87564761

SENSOR

1шт.

2

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

3

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

4

10615476

LOCK WASHER,Ext Tooth, M6

1шт.

5

47766973

SENSOR

1шт.

6

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.

7

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

87624045

TUBE

1шт.

9

47767004

SENSOR

PTO, Speed

1шт.

Выбрано товаров: 9
