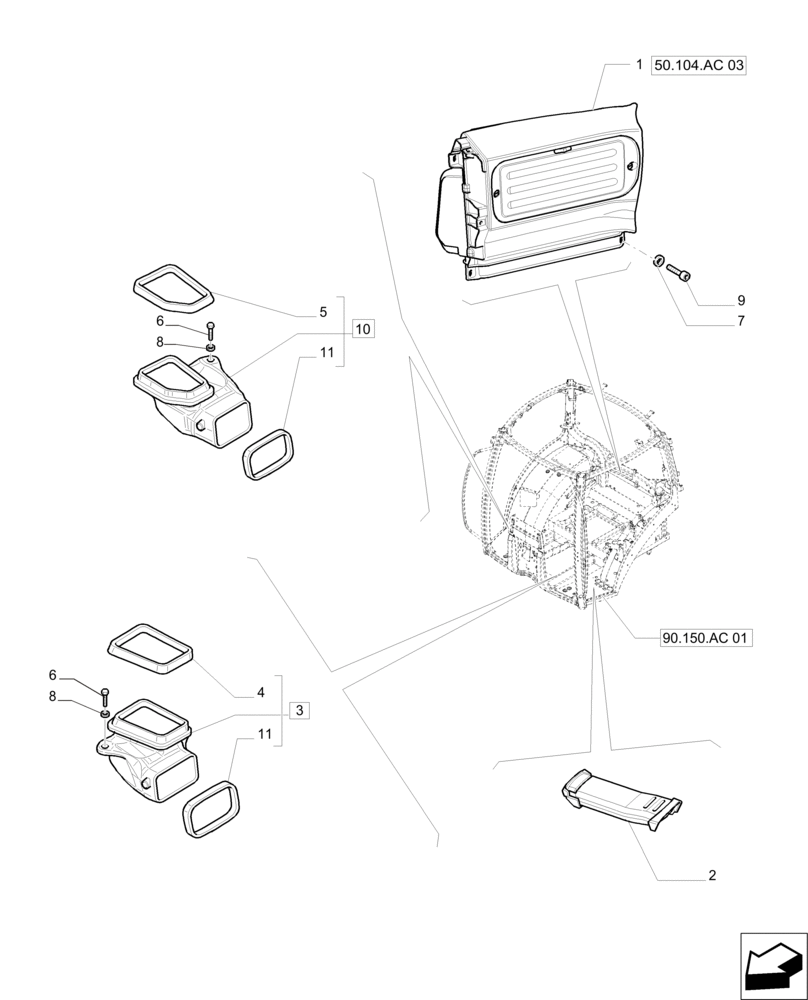

Запчасти Case IH PUMA 200 (50.104.AC[02]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

1

87651396

BLOWER,12V

1шт.

2

87301550

DUCT

LH

1шт.

2

87301551

DUCT

RH

1шт.

3

87390278

DUCT

Incl 4, 11

1шт.

4

87523726

SEAL

LH

1шт.

5

87523583

SEAL

RH

1шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

2шт.

7

17094714

LOCK WASHER,M6 x 13

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

10

87518106

DUCT

RH, Incl 5, 11

1шт.

11

87523573

SEAL

2шт.
