(39.140.AF[03]) - WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK

Запчасти Case IH PUMA 200 (39.140.AF[03]) - WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK (39) - FRAMES AND BALLASTING

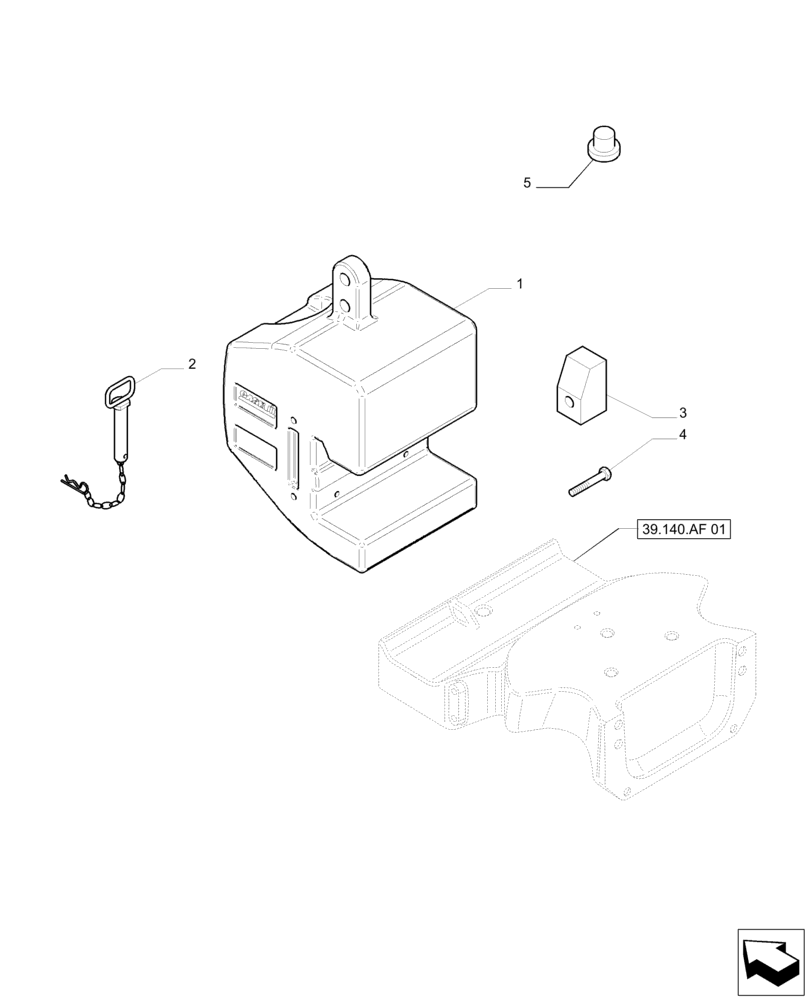

Схема запчастей Case IH PUMA 200 - (39.140.AF[03]) - WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK (39) - FRAMES AND BALLASTING
4
2
39.140.af 01
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87376053

WEIGHT

1шт.

2

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

2шт.

5

5171790

PLUG,18mm, Black

4шт.
