(39.140.AF[02]) - WEIGHT PACK INCLUDING INTEGRAL CARRIER

Запчасти Case IH PUMA 200 (39.140.AF[02]) - WEIGHT PACK INCLUDING INTEGRAL CARRIER (39) - FRAMES AND BALLASTING

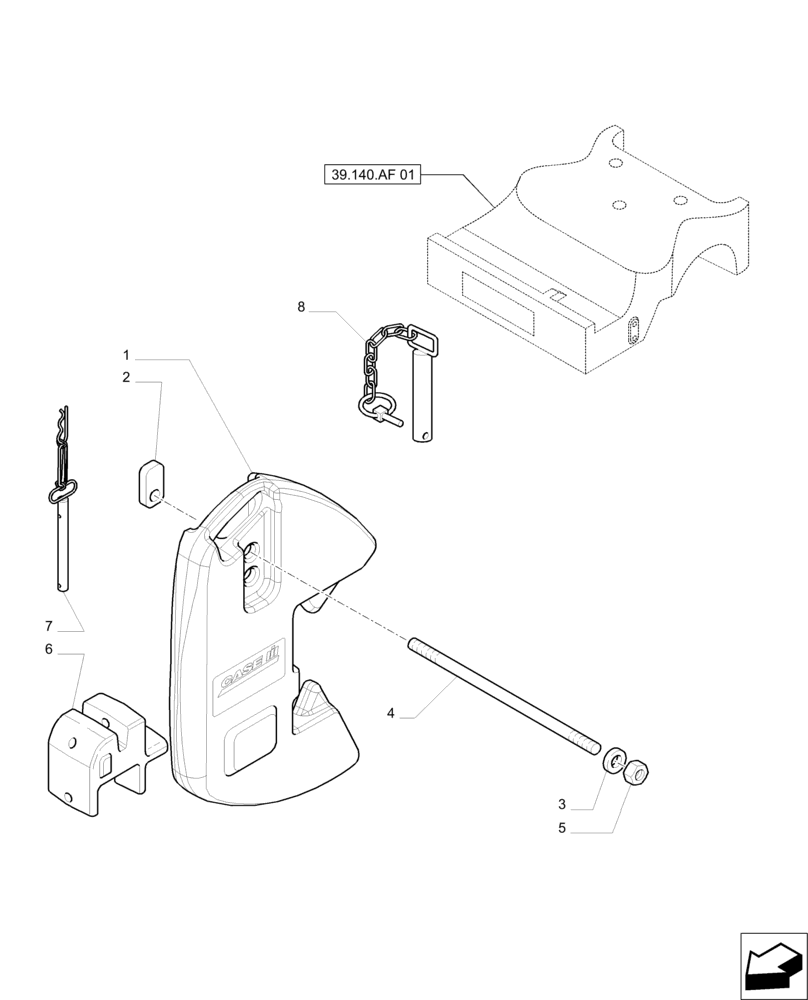

Схема запчастей Case IH PUMA 200 - (39.140.AF[02]) - WEIGHT PACK INCLUDING INTEGRAL CARRIER (39) - FRAMES AND BALLASTING
8
7
39.140.af 01
6
5
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86988727

WEIGHT,45Kg

1шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

4шт.

6

82024272

SUPPORT,110Kg

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

8

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

Выбрано товаров: 8
