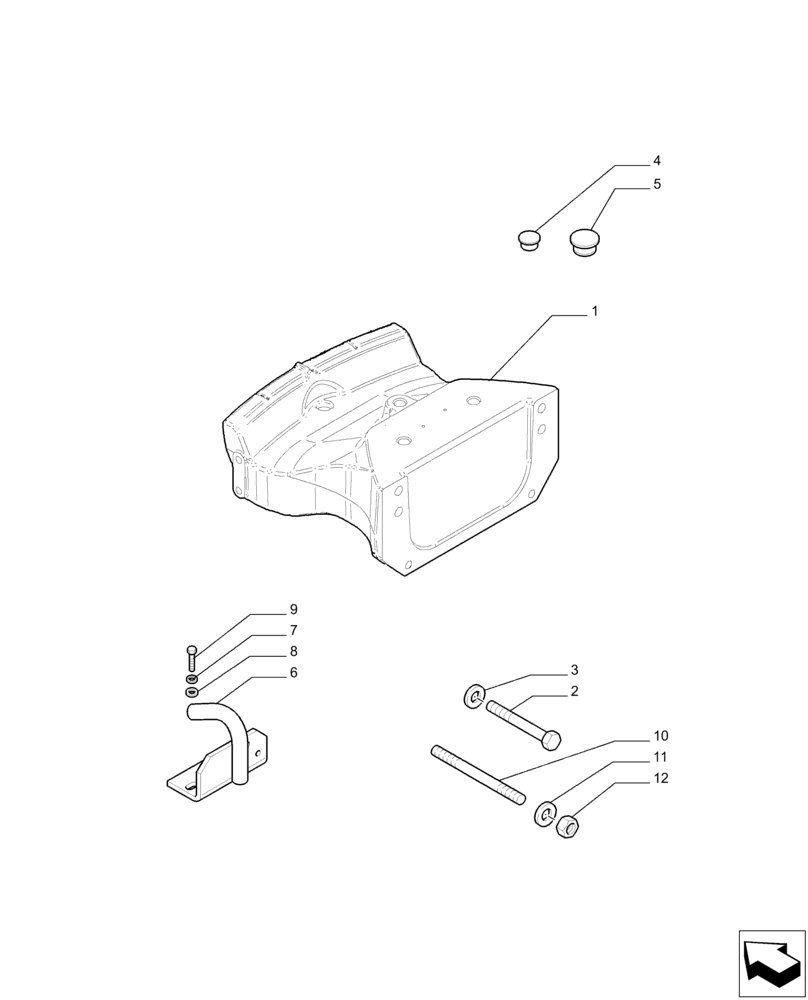

Запчасти Case IH PUMA 200 (39.140.AF[01]) - FRONT WEIGHT CARRIER (39) - FRAMES AND BALLASTING

1

84232750

WEIGHT CARRIER

1шт.

2

87329682

BOLT,Hex, M24 x 140mm, Cl 10.9

4шт.

3

87343481

WASHER,25mm ID x 44mm OD x 4mm Thk

4шт.

4

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

3шт.

5

12163524

NUT

2шт.

6

87305756

BRACKET

1шт.

7

10516674

LOCK WASHER,M8

2шт.

8

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

9

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

87302582

STUD

2шт.

11

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

12

12163524

NUT

2шт.
