(37.100.AA[02]) - INDIPENDENT ROLLER SWINGING DRAWBAR

Запчасти Case IH PUMA 200 (37.100.AA[02]) - INDIPENDENT ROLLER SWINGING DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

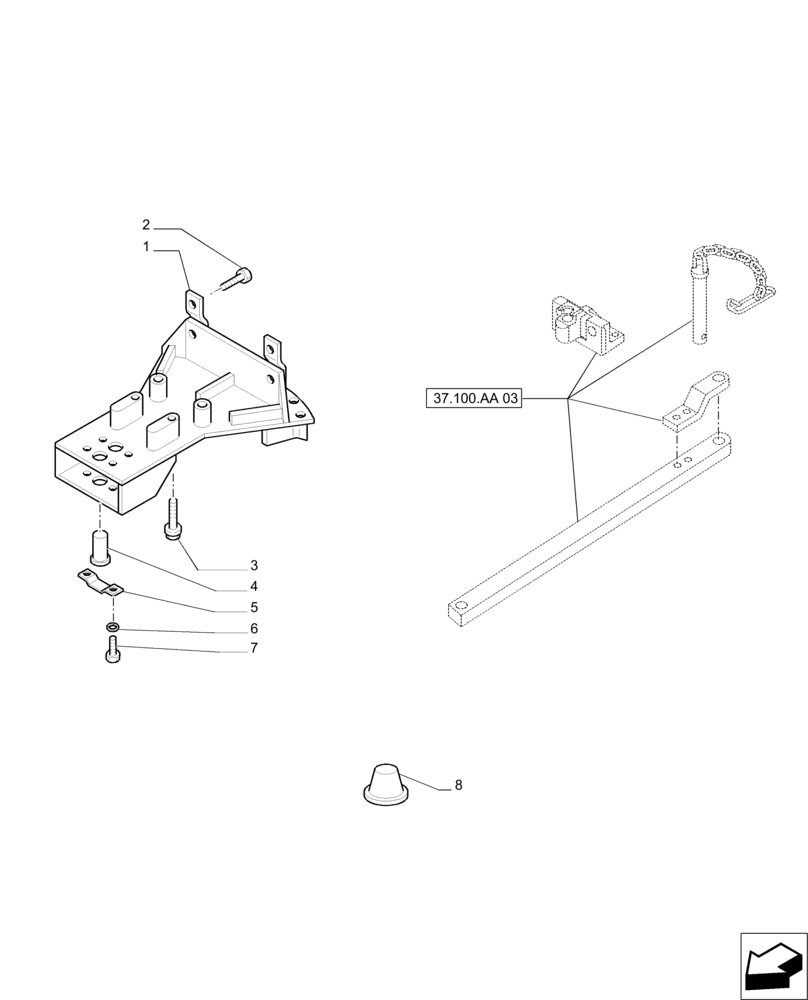

Схема запчастей Case IH PUMA 200 - (37.100.AA[02]) - INDIPENDENT ROLLER SWINGING DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
6
7
2
5
37.100.aa 03
4
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82028925

HITCH BRACKET

1шт.

2

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

4шт.

3

82001975

BOLT,Flng, M18 x 1.5 x 80mm, Cl 12.9

4шт.

4

82014774

TOWBAR PIN,32mm OD x 93.5mm L

1шт.

5

82021060

PLATE

1шт.

6

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

7

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

6шт.

Выбрано товаров: 8
