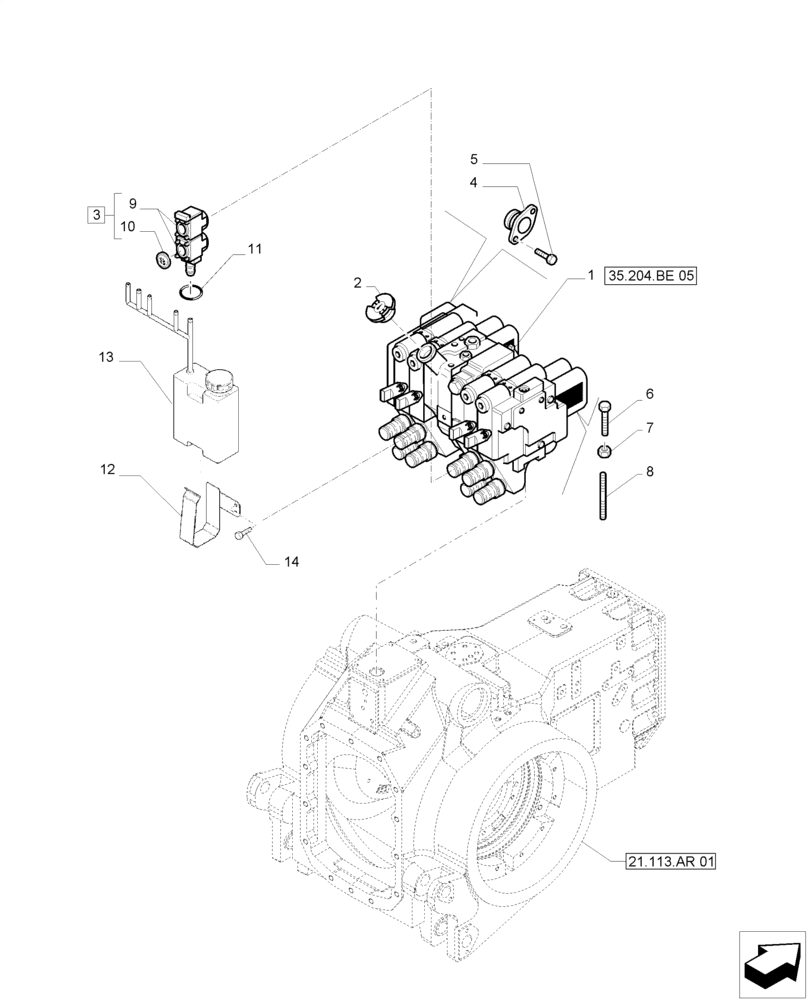

Запчасти Case IH PUMA 200 (35.204.BE[04]) - 4 X MECHANICAL BOSCH REMOTES (35) - HYDRAULIC SYSTEMS

1

84473451

HYDRAULIC VALVE

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

47617738

Incl 9, 10

CAP

4шт.

4

5189606

SUPPORT

4шт.

5

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.

6

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

7

12164711

NUT,M10 x 1.25, Cl 8

2шт.

8

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

9

84253930

DUST CAP,56.5mm H x 128mm L x 39.5mm Thk

1шт.

10

82029895

DISC,20mm D, Black

1шт.

11

82029356

SEAL,20.00mm OD x 3.00mm

1шт.

12

84312030

SUPPORT

1шт.

13

84286362

BOTTLE

1шт.

14

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
