(35.100.BI[02]) - HYDRAULIC POWER LIFT - CYLINDER - BREAKDOWN

Запчасти Case IH PUMA 200 (35.100.BI[02]) - HYDRAULIC POWER LIFT - CYLINDER - BREAKDOWN (35) - HYDRAULIC SYSTEMS

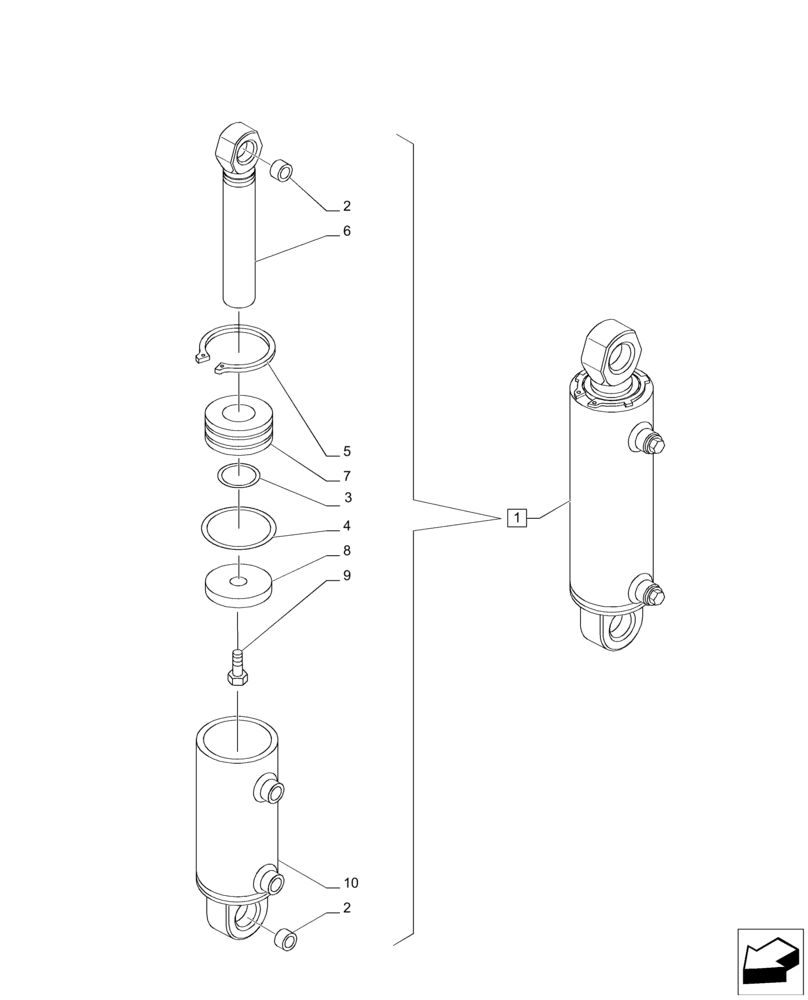

Схема запчастей Case IH PUMA 200 - (35.100.BI[02]) - HYDRAULIC POWER LIFT - CYLINDER - BREAKDOWN (35) - HYDRAULIC SYSTEMS
7
10
8
4
9
2
1
5
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47130987

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 228mm Stroke

Incl 2 - 10

2шт.

2

5198652

BUSHING

2шт.

3

47131008

SEAL KIT

1шт.

4

5198583

SNAP RING

1шт.

5

5198582

CIRCLIP

1шт.

6

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plunger, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Engine Cylinder Liner, Incl in 1

1шт.

Выбрано товаров: 10
