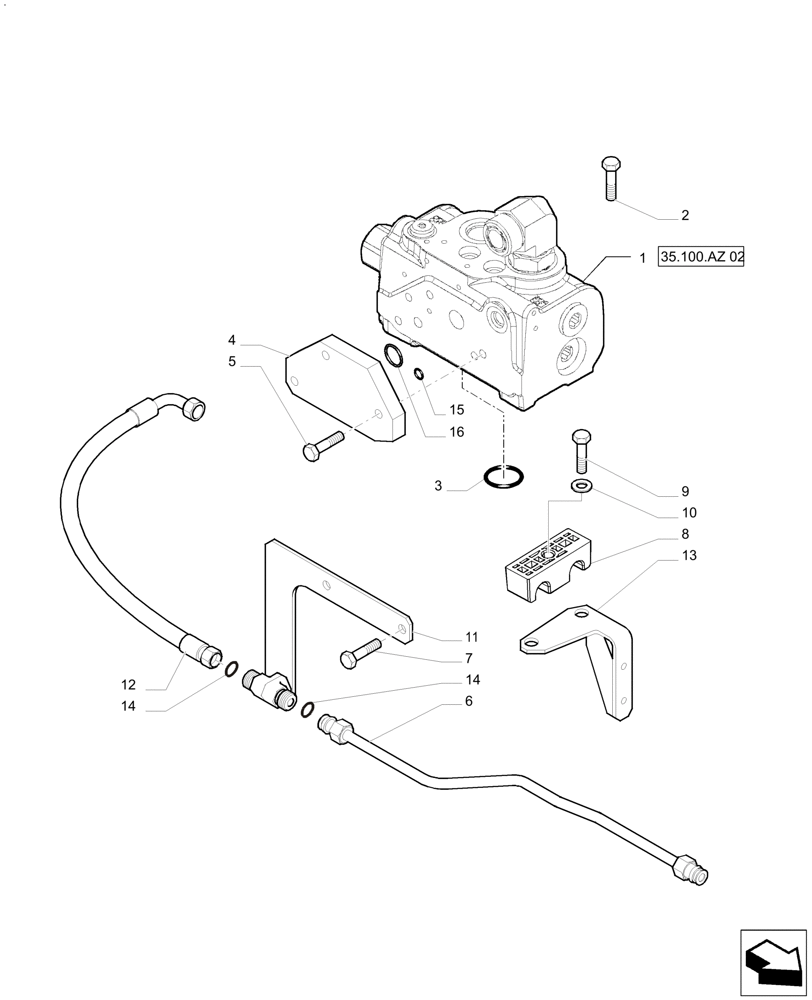

Запчасти Case IH PUMA 200 (35.100.AZ[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - PRIORITY VALVE AND PIPES (35) - HYDRAULIC SYSTEMS

1

87555077

HYDRAULIC VALVE

1шт.

2

14421431

HEX SOC SCREW,M10 x 1.5 x 100mm, Cl 10.9

1шт.

3

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

4

87316882

COVER

1шт.

5

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

3шт.

6

47669891

TUBE

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

87325889

BRACKET

1шт.

9

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

11

82037429

BRACKET

1шт.

12

82038870

HOSE,9.53mm ID x 620mm L, SAE 100R16

1шт.

13

47475527

BRACKET

1шт.

14

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

15

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

16

86637770

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

1шт.
