(31.114.AB[11]) - POWER TAKE-OFF 1000E/1000 RPM - GEARS

Запчасти Case IH PUMA 200 (31.114.AB[11]) - POWER TAKE-OFF 1000E/1000 RPM - GEARS (31) - IMPLEMENT POWER TAKE OFF

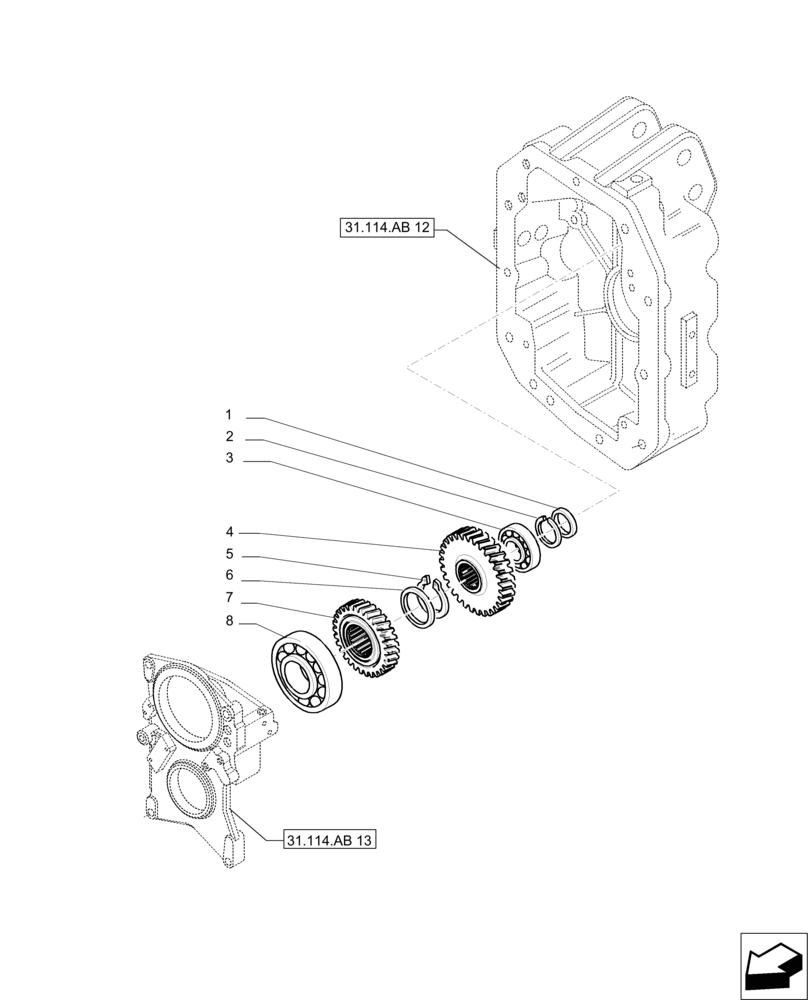

Схема запчастей Case IH PUMA 200 - (31.114.AB[11]) - POWER TAKE-OFF 1000E/1000 RPM - GEARS (31) - IMPLEMENT POWER TAKE OFF
3
8
31.114.ab 13
31.114.ab 12
4
7
1
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

2

5154307

SNAP RING,M35

1шт.

3

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

4

87548137

DRIVING GEAR

1шт.

5

5138419

SNAP RING,M50

1шт.

6

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

1шт.

7

87548135

DRIVING GEAR

1шт.

8

87543968

BALL BEARING,75mm ID x 130mm OD x 25mm W

1шт.
