(27.120.AI[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS

Запчасти Case IH PUMA 200 (27.120.AI[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (27) - REAR AXLE SYSTEM

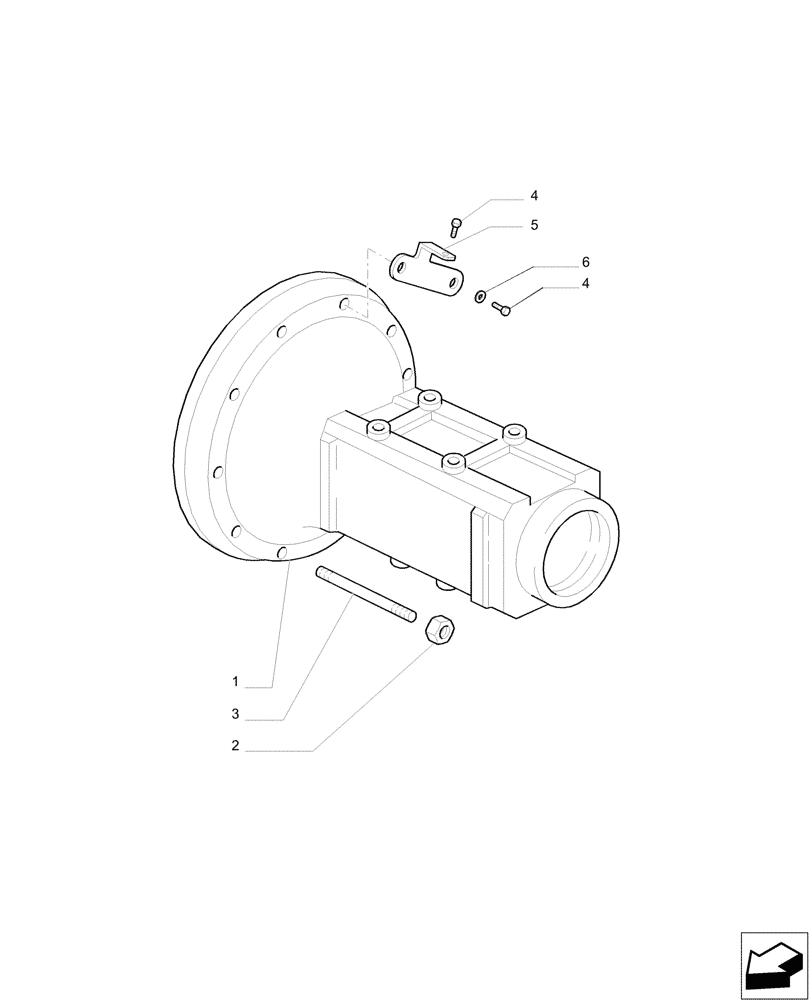

Схема запчастей Case IH PUMA 200 - (27.120.AI[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (27) - REAR AXLE SYSTEM
1
5
3
6
2
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47994298

REAR AXLE

PUMA 200

2шт.

1

47994301

REAR AXLE

PUMA 215 / PUMA 230

2шт.

2

12164124

NUT,M16 x 1.5, Cl 8

24шт.

3

47693628

STUD

24шт.

4

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

5

84488701

BRACKET

RH

1шт.

5

84488702

BRACKET

LH

1шт.

6

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
