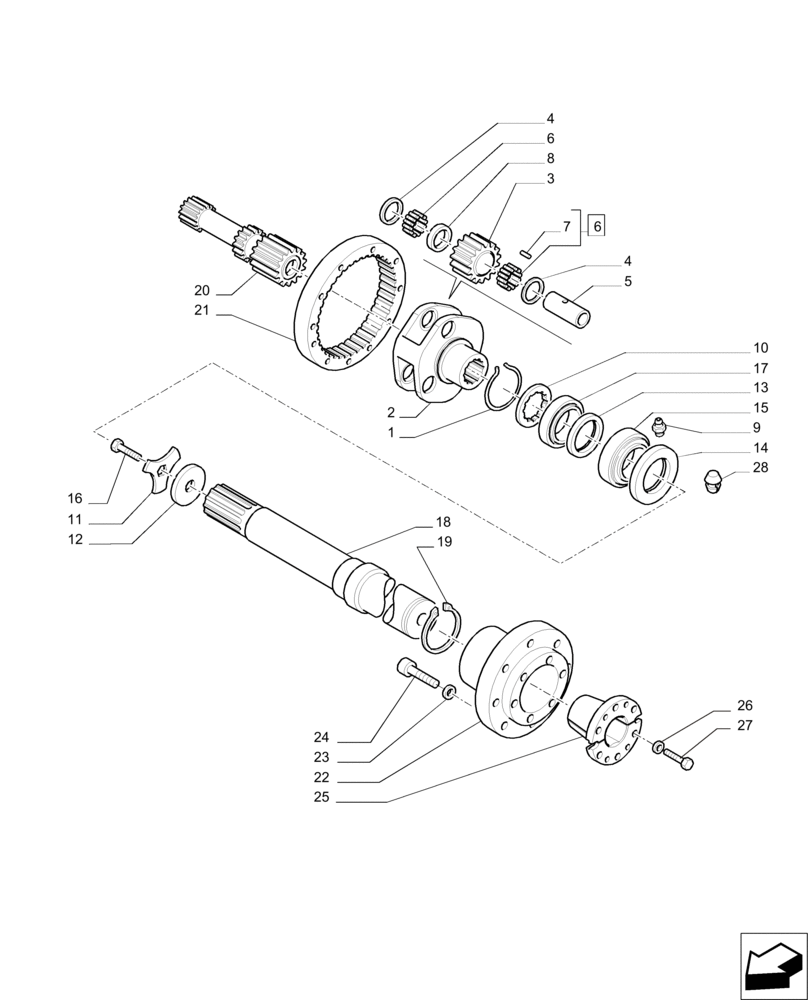

Запчасти Case IH PUMA 200 (27.100.AR[02]) - BAR AXLE 98" AND 112" FINAL DRIVE (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Incl 7

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

87309276

MAIN SHAFT

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

2шт.

20

87307366

GEAR SHAFT

2шт.

21

87307352

RING GEAR

2шт.

22

47126431

HUB

2шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

24

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

25

87645102

WEDGE,Lock, Silver

2шт.

26

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

12шт.

27

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

28

81865567

PLUG,M18.5 Hole

2шт.
