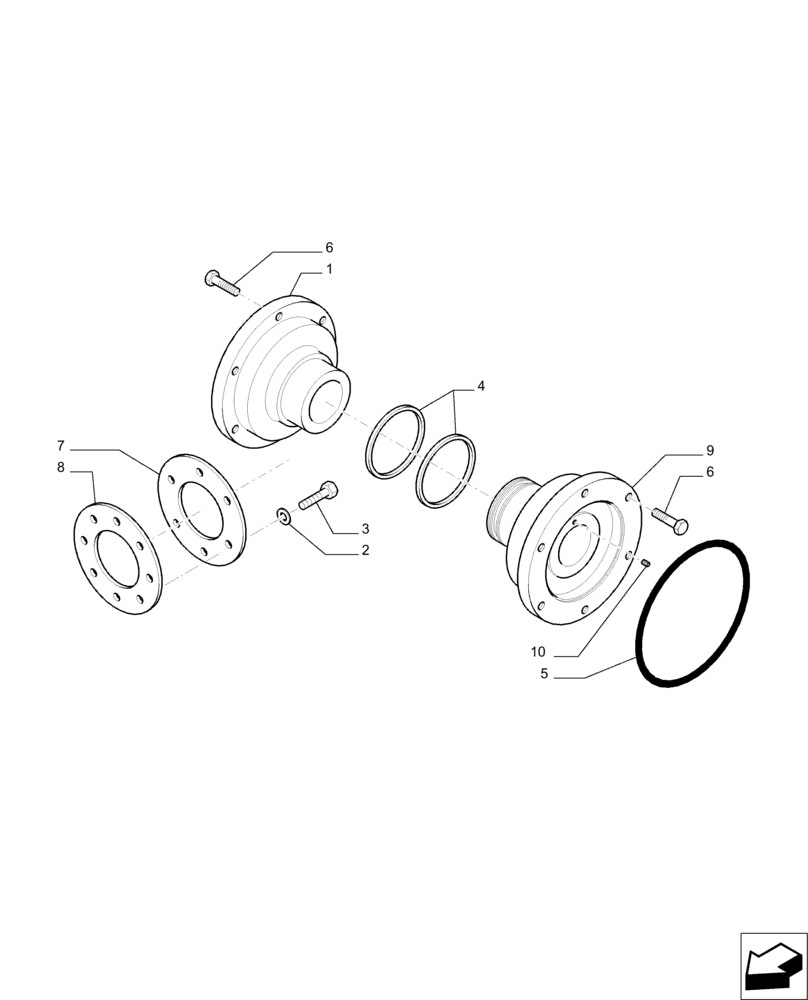

Запчасти Case IH PUMA 200 (27.100.AB) - TRANSMISSION, COVERS AND SUPPORTS (27) - REAR AXLE SYSTEM

1

5185923

SUPPORT

1шт.

2

11190570

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

3

16204321

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

8шт.

4

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

5

14462280

O-RING,6.237" ID x 0.103" Width

1шт.

6

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

7

5152097

SHIM,168mm ID x 208mm OD x 0.15mm Thk

2шт.

7

5152098

SHIM,168mm ID x 208mm OD x 0.2mm Thk

2шт.

7

5152099

SHIM,168mm ID x 208mm OD x 0.5mm Thk

2шт.

8

5185547

PLATE

1шт.

9

47136375

SUPPORT

1шт.

10

14326101

PLUG,M8 x 11

1шт.
