Запчасти Case IH PUMA 200 (25.108.AB[02]) - FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (25) - FRONT AXLE SYSTEM

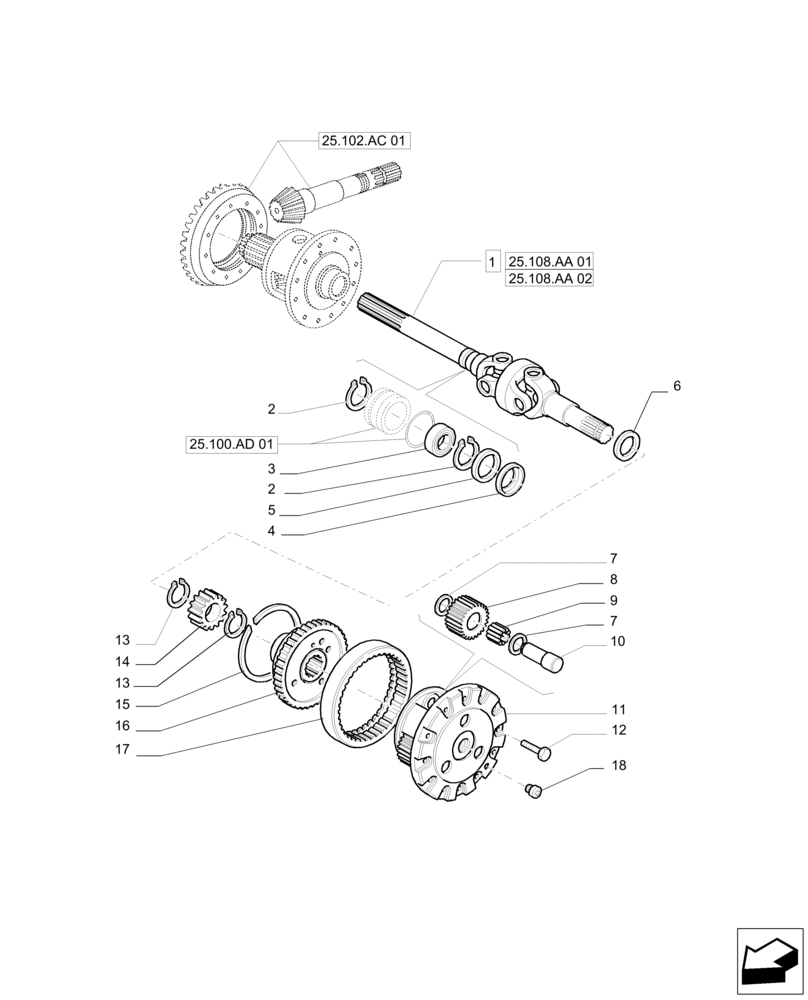

Схема запчастей Case IH PUMA 200 - (25.108.AB[02]) - FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (25) - FRONT AXLE SYSTEM
15
25.100.ad 01
13
18
9
14
16
3
4
17
2
1
7
6
25.108.aa 02
11
13
8
12
7
25.108.aa 01
5
2
25.102.ac 01
10

Артикул

Название

Примечание

Количество

1

84184133

AXLE-SHAFT, ARTICULA

Assy. LH, Incl 2 - 18

1шт.

1

84184130

AXLE-SHAFT, ARTICULA

Assy. RH, Incl 2 - 18

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

7

87576870

THRUST WASHER

16шт.

8

87576871

IDLER PINION

8шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

8шт.

10

87576864

PIN

8шт.

11

87576875

SUPPORT

2шт.

12

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

84262815

PLANETARY GEAR

2шт.

15

4986355

CIRCLIP

2шт.

16

5141691

DISC

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

Выбрано товаров: 19
