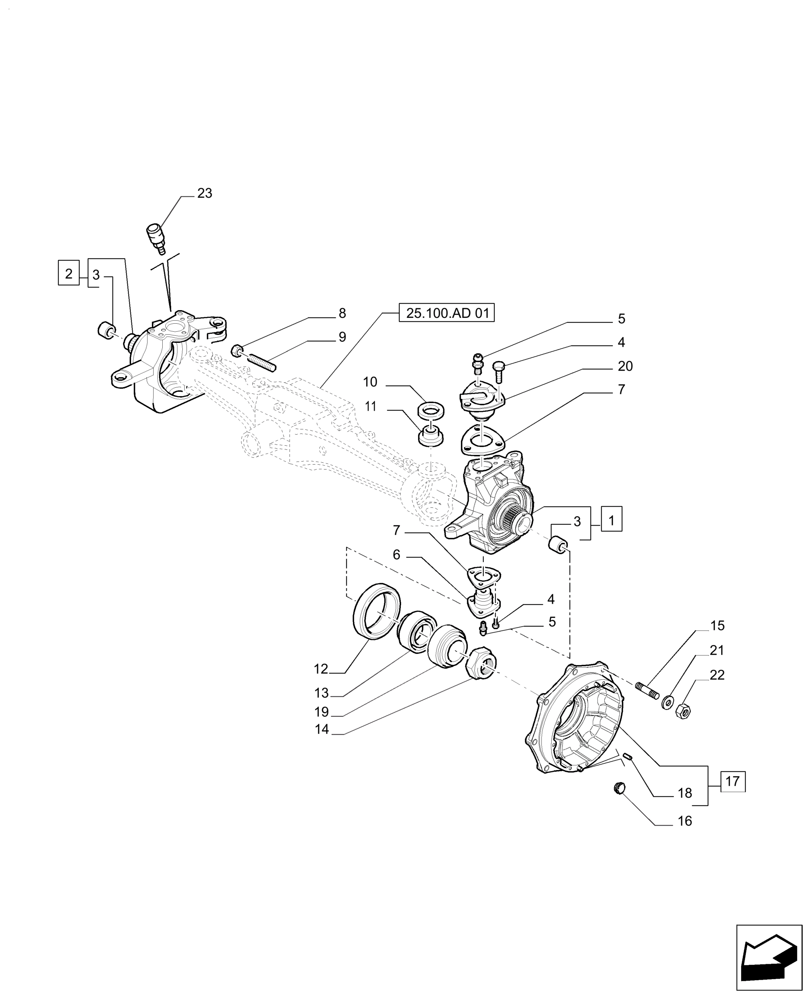

Запчасти Case IH PUMA 200 (25.108.AB[01]) - FRONT AXLE - STEERING AXLES AND HUBS (25) - FRONT AXLE SYSTEM

1

47840428

STEERING KNUCKLE

Incl 3, LH

1шт.

2

47840431

STEERING KNUCKLE

Incl 3, RH

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

2шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

2шт.

13

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

4шт.

14

5141692

NUT,M90 x 2

2шт.

15

87618916

STUD

24шт.

16

82013380

CAP COVER

4шт.

17

47835362

HUB

Incl 18

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

84545376

TAPERED BEARING,109.54mm ID x 158.7mm OD x 23.020mm L

16шт.

20

87382381

BALL STUD

1шт.

21

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

24шт.

22

10790524

NUT,M16 x 1.5

24шт.

23

13413290

BREATHER

2шт.
