(25.108.AA[02]) - FRONT AXLE - AXLE-SHAFT ARTICULATED - BREAKDOWN

Запчасти Case IH PUMA 200 (25.108.AA[02]) - FRONT AXLE - AXLE-SHAFT ARTICULATED - BREAKDOWN (25) - FRONT AXLE SYSTEM

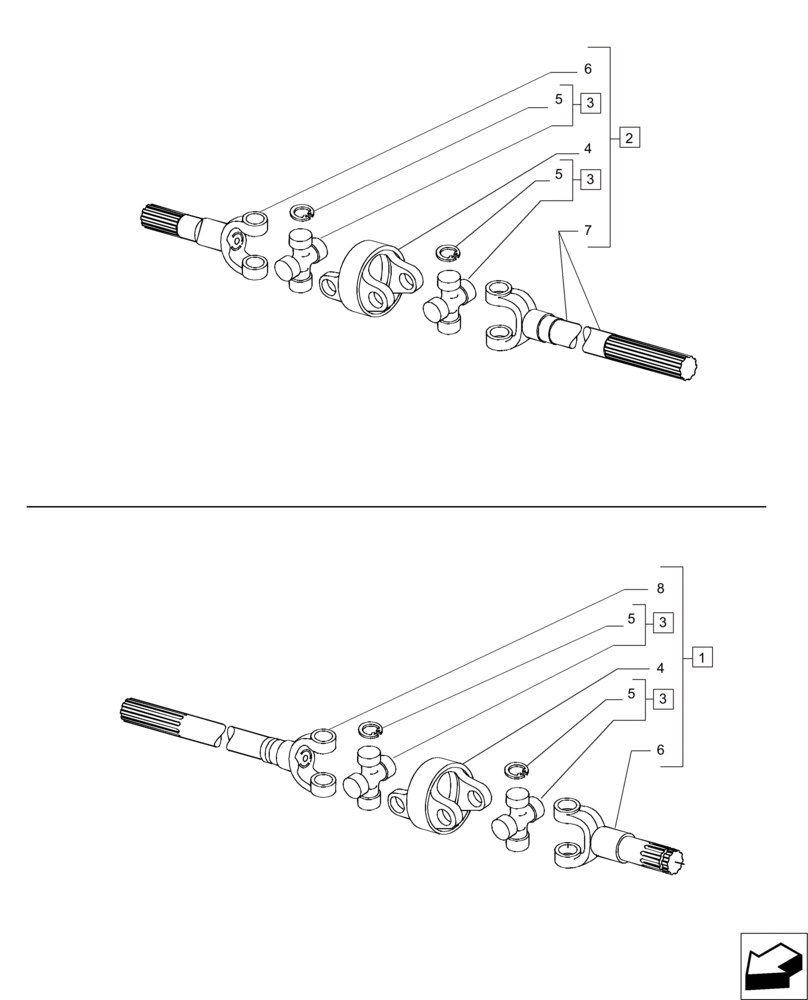

Схема запчастей Case IH PUMA 200 - (25.108.AA[02]) - FRONT AXLE - AXLE-SHAFT ARTICULATED - BREAKDOWN (25) - FRONT AXLE SYSTEM
5
2
6
4
3
4
3
3
5
1
7
6
8
5
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84184133

AXLE-SHAFT, ARTICULA

Assy. LH, Incl 3 - 6, 8

1шт.

2

84184130

AXLE-SHAFT, ARTICULA

Assy. RH, Incl 3 - 7

1шт.

3

5191451

SPIDER

Incl 5

4шт.

4

87568624

U-JOINT SPIDER

2шт.

5

5191452

LOCKING RING

16шт.

6

84189307

ARTICULATED SHAFT

Short, 210 mm

2шт.

7

84189223

SHAFT

Long RH, 668 mm

1шт.

8

84189264

SHAFT

Long LH, 723 mm

1шт.

Выбрано товаров: 8
