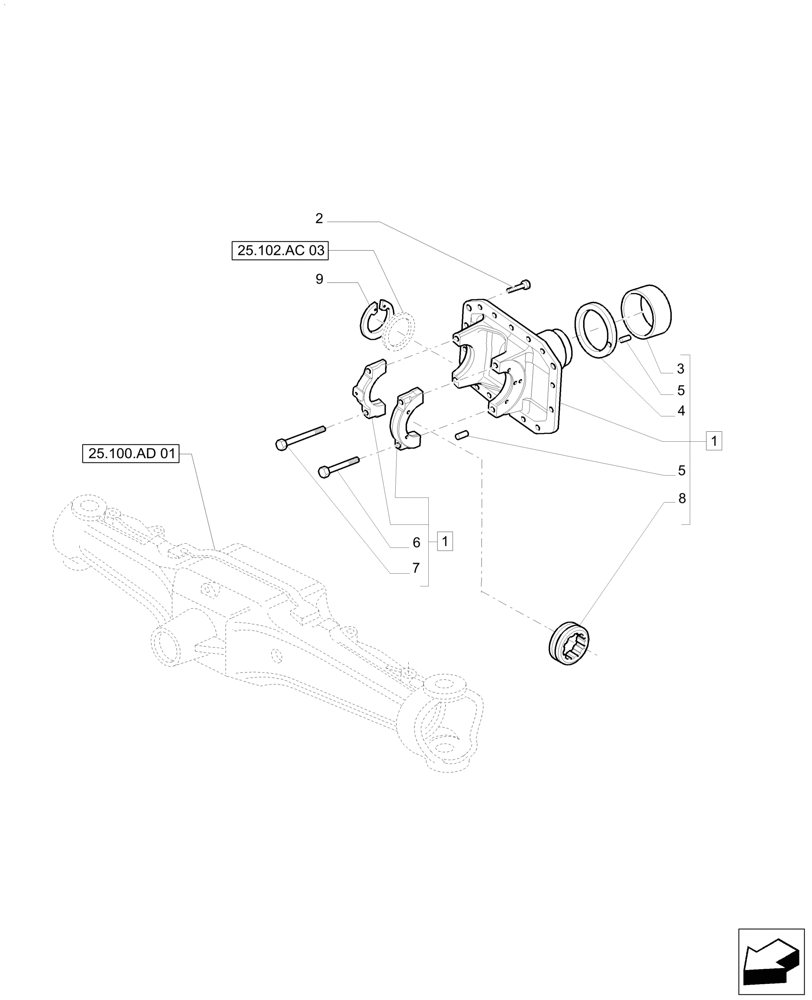

Запчасти Case IH PUMA 200 (25.102.AU[02]) - FRONT AXLE (3 M) - SUPPORT - CANE VERSION (25) - FRONT AXLE SYSTEM

1

47461037

SUPPORT

Incl 3 - 7

1шт.

2

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

14шт.

3

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

1шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

1шт.

5

4966244

PIN,5mm OD x 15mm L

6шт.

6

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

7

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

2шт.

8

5110423

RING NUT

1шт.

9

11075476

SNAP RING,M110, Int

1шт.
