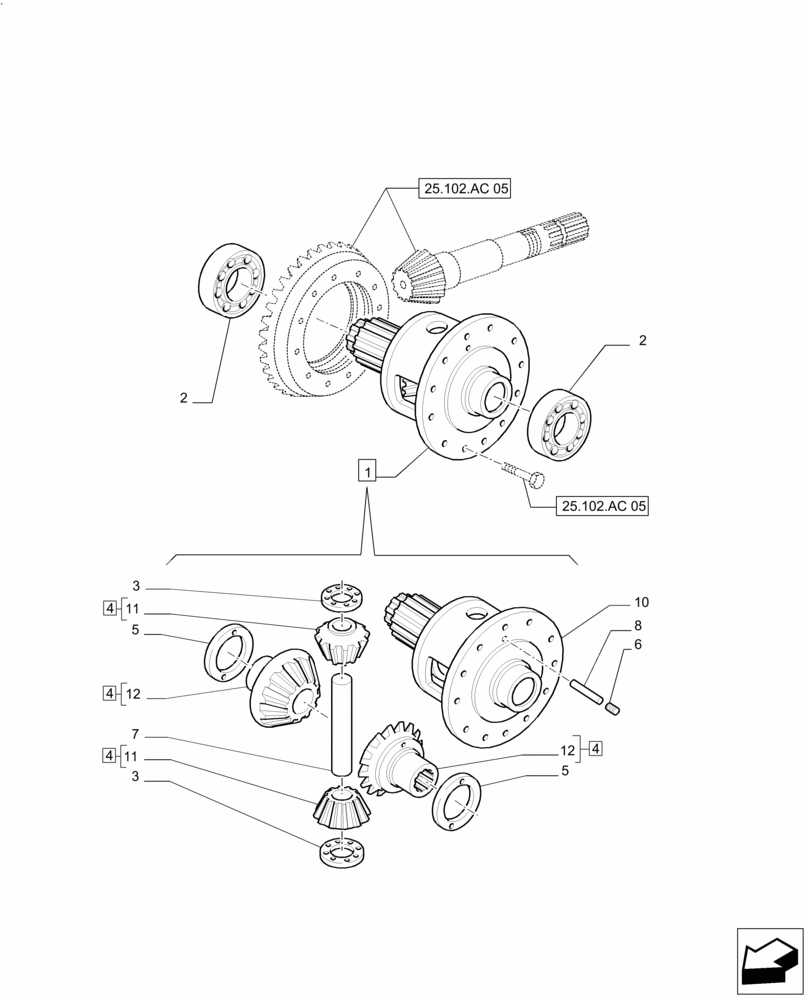

Запчасти Case IH PUMA 200 (25.102.AD[02]) - FRONT AXLE - DIFFERENTIAL - CANE VERSION (25) - FRONT AXLE SYSTEM

1

47900289

DIFFERENTIAL ASSY

Incl 3 - 12

1шт.

2

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

3

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

4

87381508

GEAR SET

Incl 11, 12

1шт.

5

4997235

THRUST WASHER,51mm ID x 70mm OD x 1.5mm Thk

1шт.

5

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

1шт.

5

5138267

THRUST WASHER,51mm ID x 70mm OD x 1.7mm Thk

1шт.

5

5144801

THRUST WASHER,51mm ID x 70mm OD x 1.4mm Thk

1шт.

5

5144802

THRUST WASHER,51mm ID x 70mm OD x 1.8mm Thk

1шт.

5

5170588

THRUST WASHER,51mm ID x 70mm OD x 1.9mm Thk

1шт.

5

5170589

THRUST WASHER,51mm ID x 70mm OD x 2mm Thk

1шт.

5

5182769

THRUST WASHER,51mm ID x 70mm OD x 2.1mm Thk

1шт.

5

5182770

THRUST WASHER,51mm ID x 70mm OD x 2.2mm Thk

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

4991652

PIN,23mm OD x 157mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

87342770

HOUSING

1шт.

11

4991695

IDLER PINION

2шт.

12

5149551

PLANETARY GEAR,19T

2шт.
